Pure aluminum foil polypropylene film capacitors offer several advantages for both crossover networks and loudspeakers:
Advantages for Crossover Networks:
High-frequency characteristics: Pure aluminum foil polypropylene film capacitors exhibit excellent high-frequency properties, ensuring accurate separation of different frequency signals within the crossover network.
Low impedance: These capacitors have low impedance characteristics, allowing efficient transmission of high-frequency signals and reducing impedance-related effects, thus ensuring stable high-frequency output from the crossover network.
Excellent heat resistance: Pure aluminum foil polypropylene film capacitors perform exceptionally well in high-temperature environments, maintaining their performance and stability under various operating conditions.
Precise crossover: Due to high-quality manufacturing and stable properties, these capacitors provide precise crossover points, ensuring accurate separation of signals at different frequencies.
Advantages for Loudspeakers:
High-quality audio reproduction: These capacitors offer outstanding audio reproduction capabilities, accurately transmitting audio signals and delivering high-quality, refined, and realistic sound effects from the loudspeakers.
Low distortion: With low distortion characteristics, these capacitors effectively reduce signal distortion in the audio frequency range, resulting in cleaner, undistorted sound output from the loudspeakers.
Wide frequency response: Pure aluminum foil polypropylene film capacitors have a broad frequency response range, enabling them to handle various frequencies and allowing the loudspeakers to perform excellently in both high and low-frequency ranges.
Low noise: These capacitors exhibit low noise properties, reducing self-generated noise and ensuring clear, pure sound output from the loudspeakers.
In summary, pure aluminum foil polypropylene film capacitors provide high-quality sound performance for both crossover networks and loudspeakers, ensuring accurate signal separation and refined audio reproduction for superior sound quality in various audio applications.
Pure aluminum foil and polypropylene film capacitor is a new product developed by M.D.L. Audio capacitor
Pure aluminum foil and polypropylene film capacitor is mainly used for the tweeter of the crossover.
This new aluminum PPA series have a great improvement in the quality of the treble, not making it High-pitched but very soft tone.
Based on your design of the crossover and good performance in sound, pure aluminum foil and polypropylene film capacitor is the right choice to replace your current polyester and polypropylene film capacitor, or to be used in your next new project.
400V-630V is suitable for coupling capacitors of vacuum tube power amplifiers.

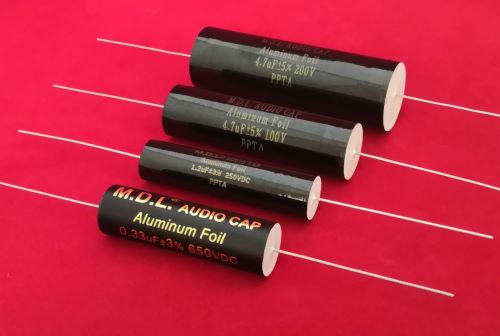

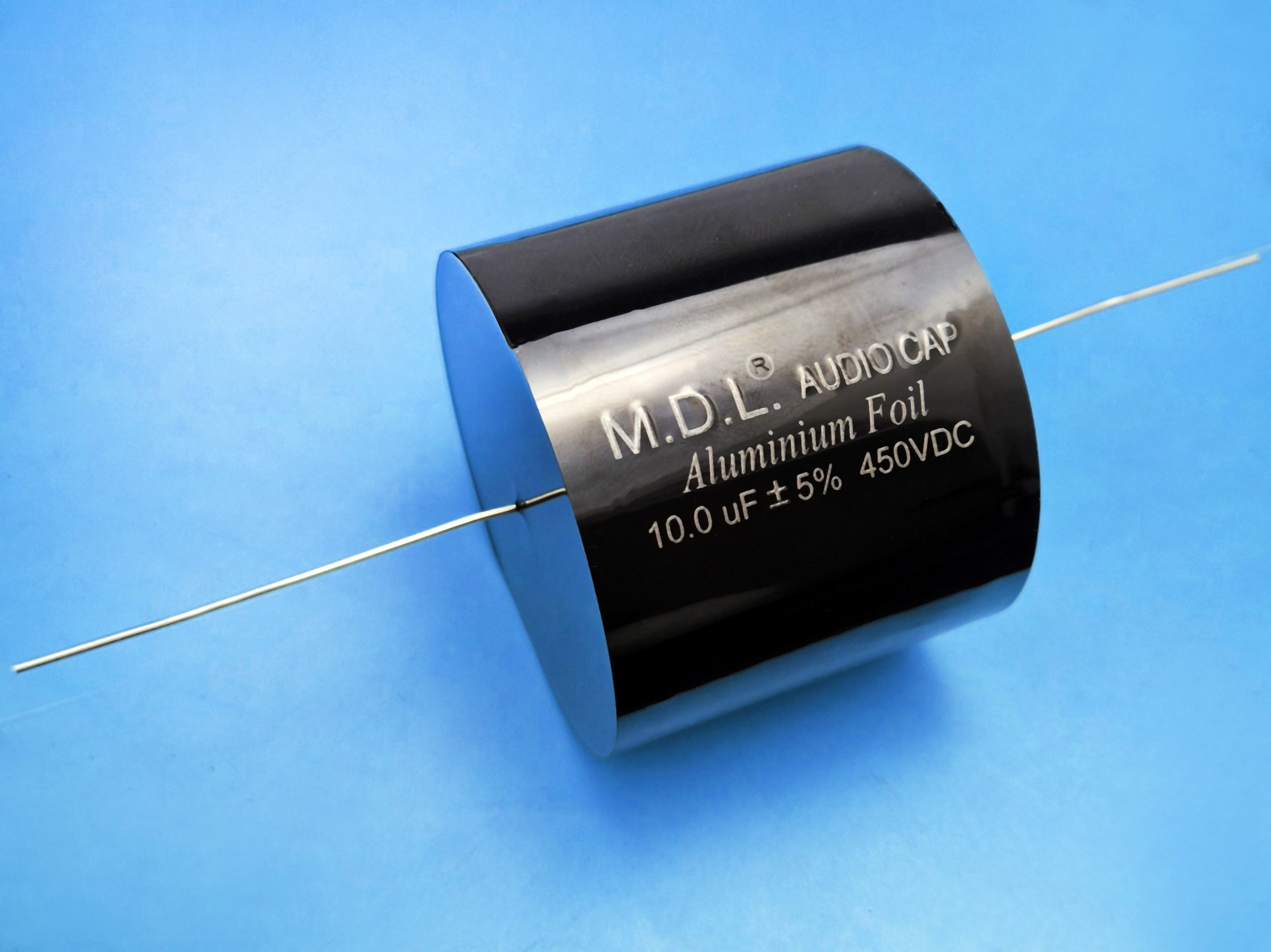

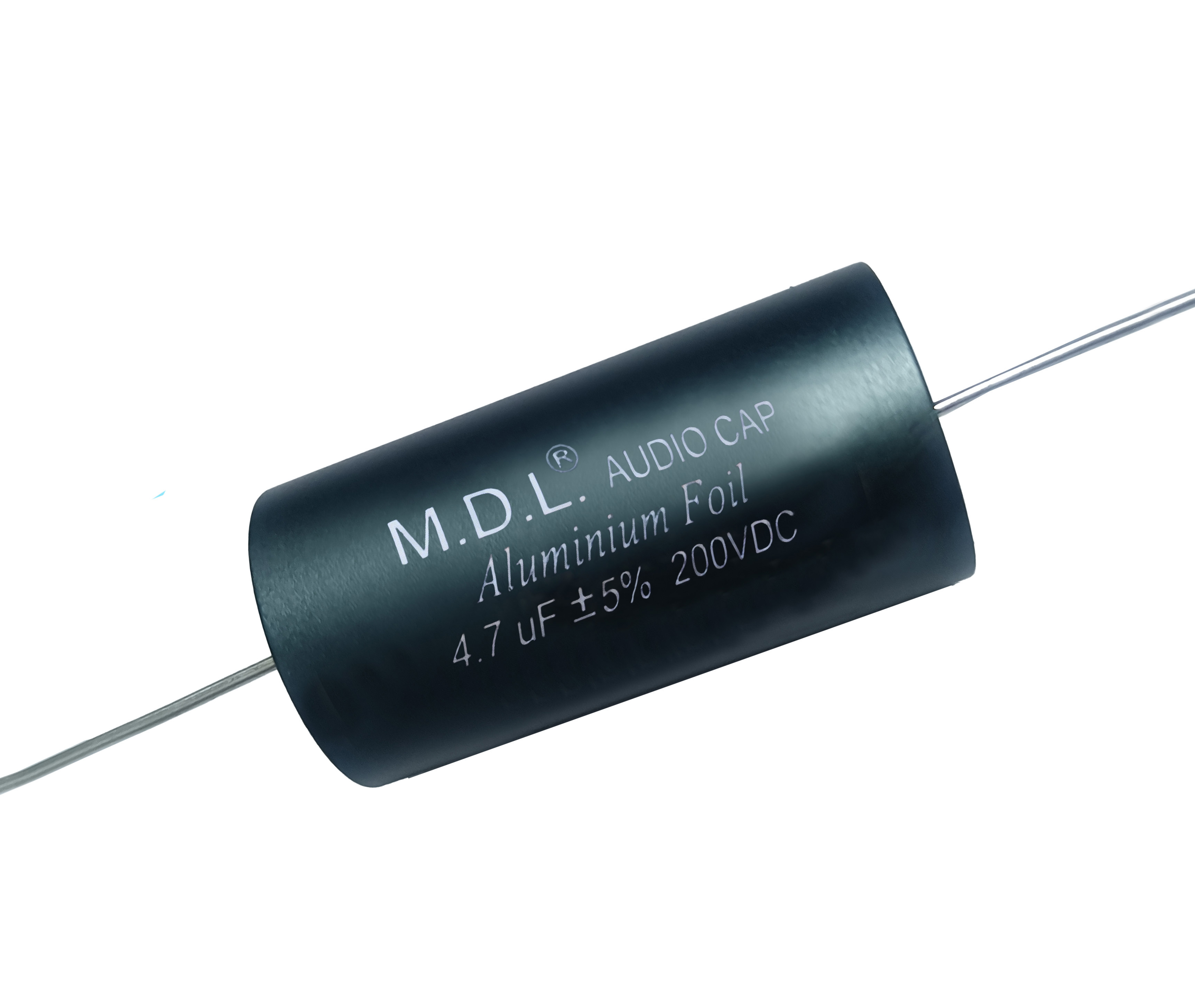

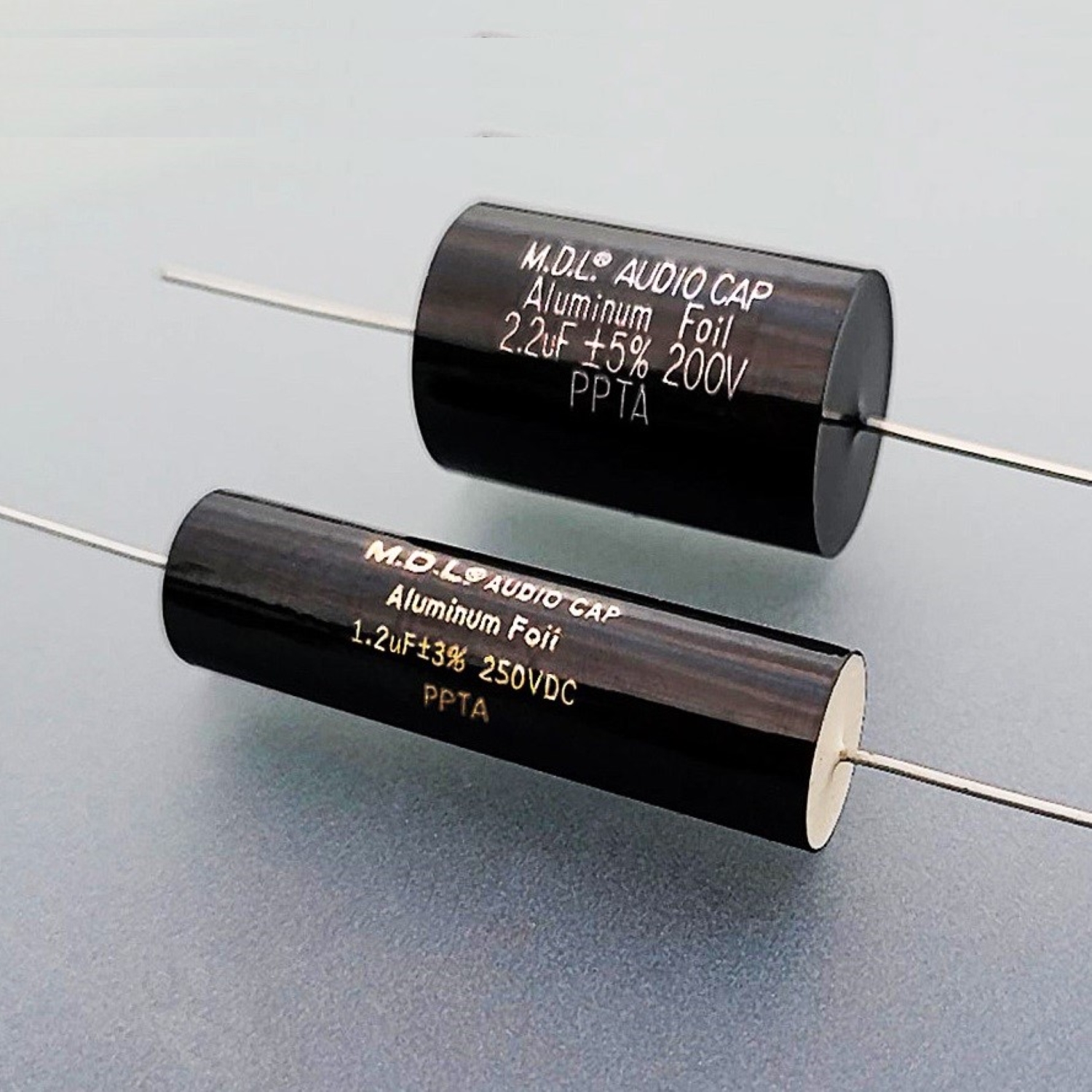

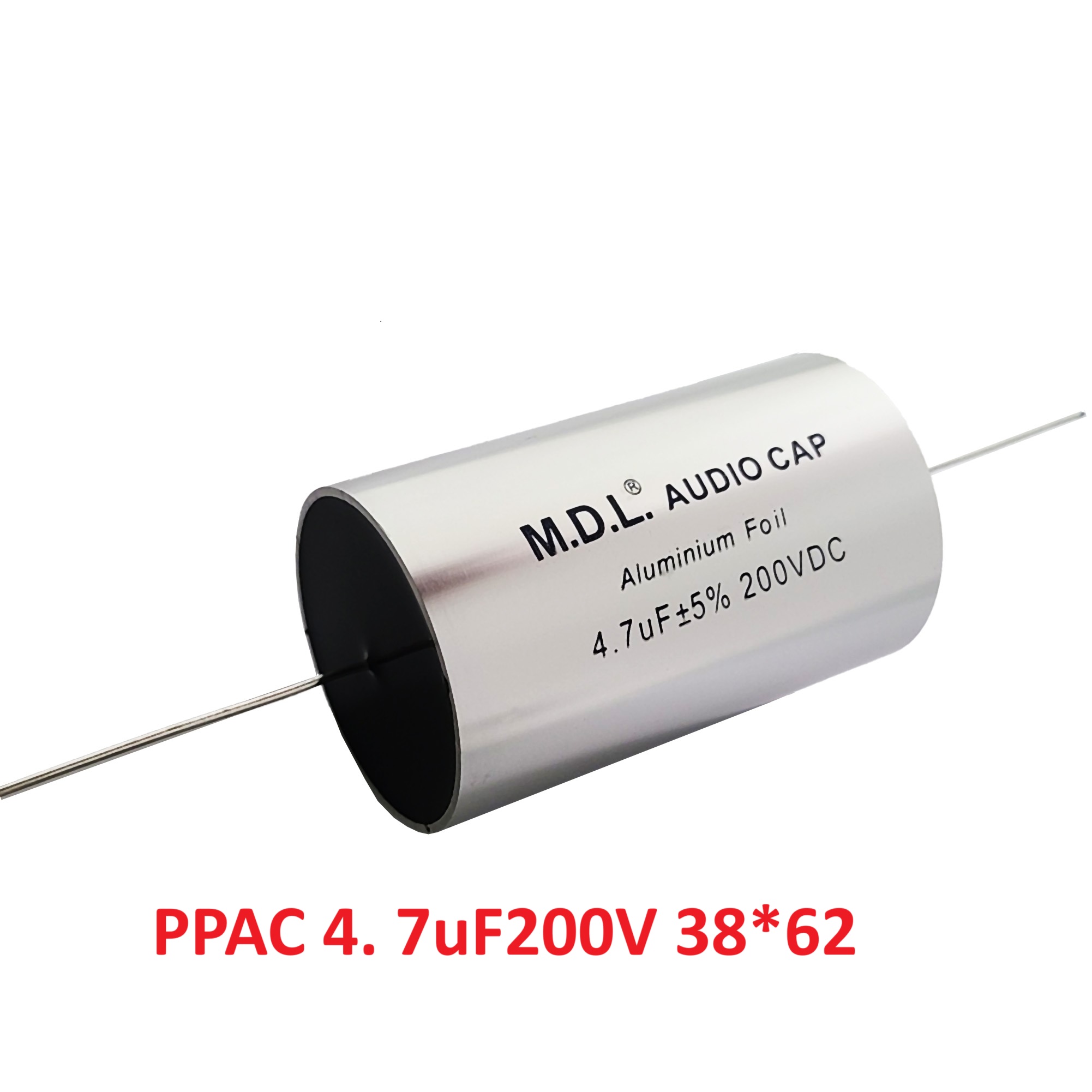

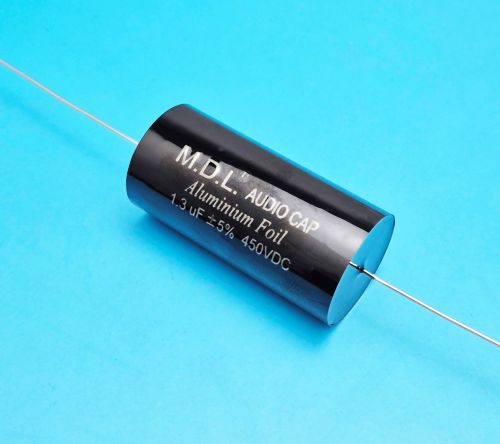

Pure Aluminum foil and Polypropylene base Film Capacitors

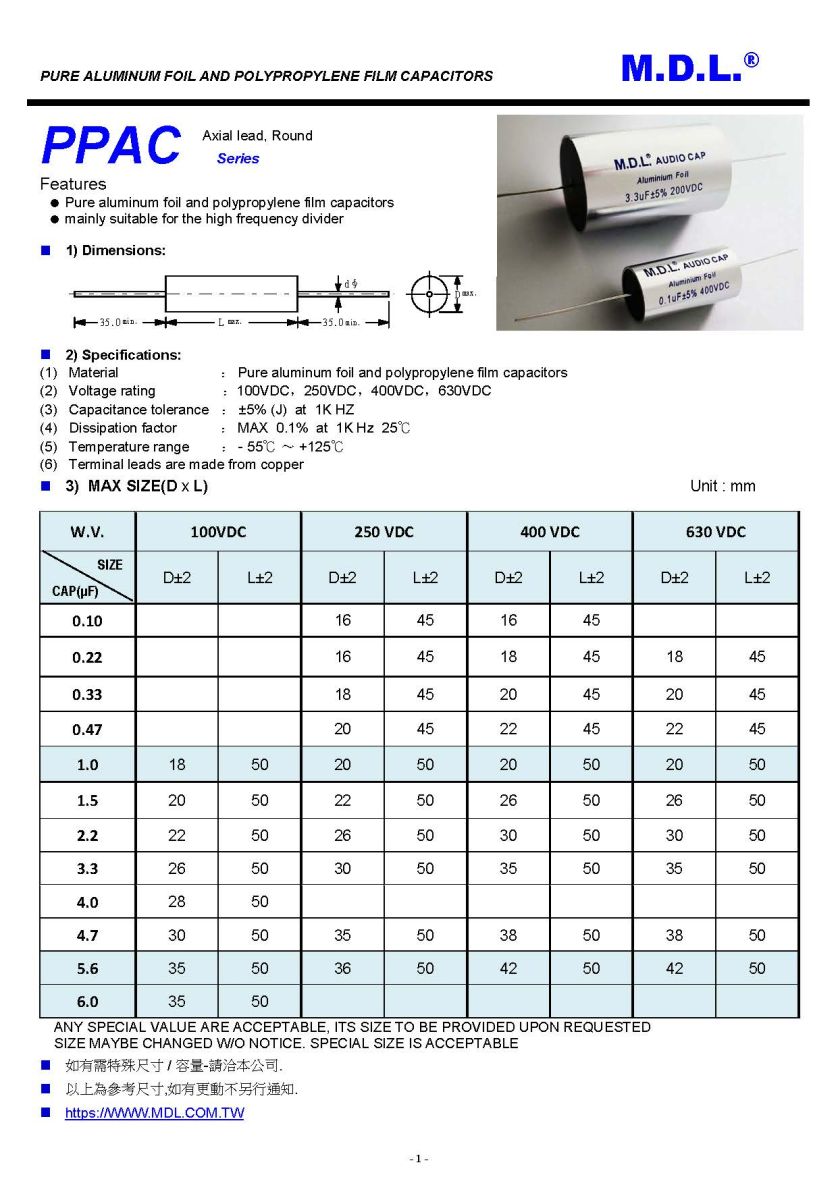

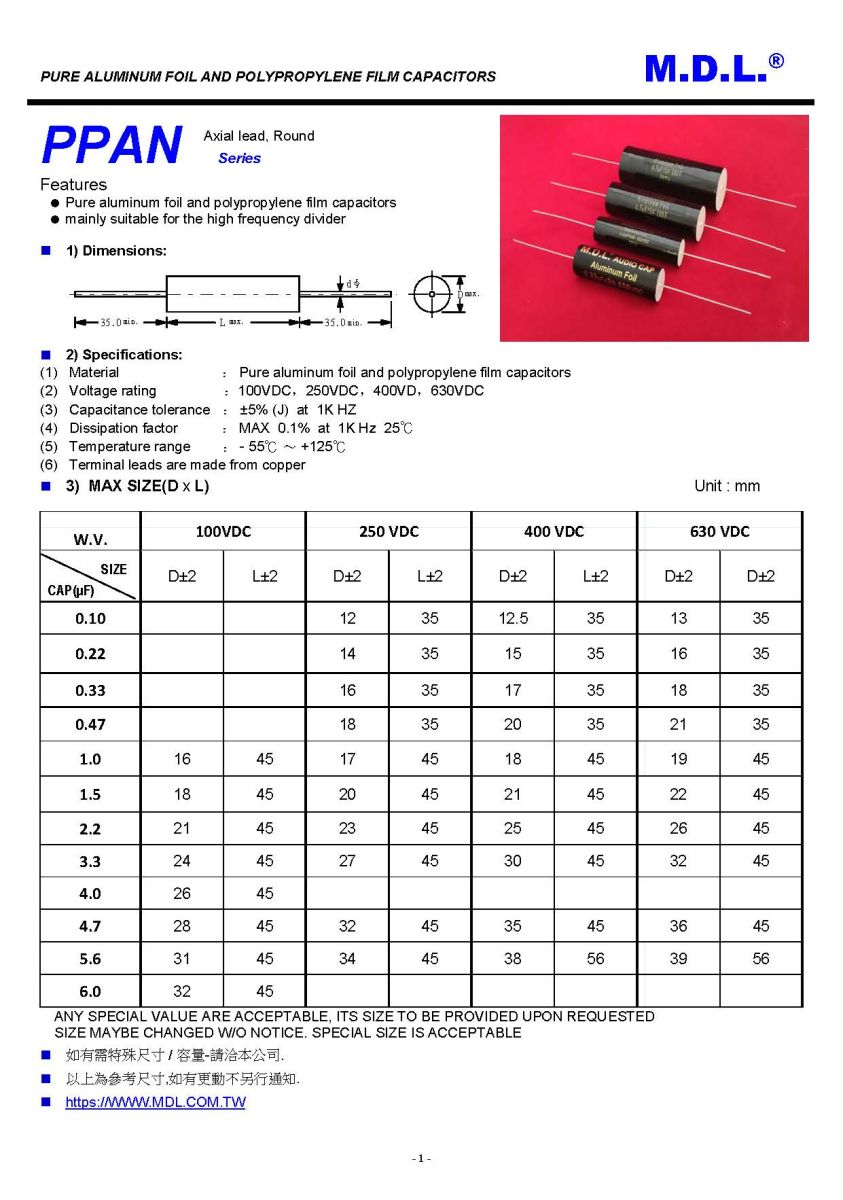

Series: PPAN PPAC
Test Frequency: 1K HZ
Max Dissipation Factor : 0.02% MAX
Pin Type: AXIAL
W.V.: 100V-630V
Type: Horizontal Cylinder
• An extremely fast reacting capacitor
• Very low ESR, SEL, inductance and dielectric absorption data
• High quality pure aluminum foil wound with highly specialized machinery and precision winding techniques
• Specifically designed for the tweeter and mid-range section of passive crossovers
• Can also be used as coupling capacitors for transistor amplifiers
All series can be customized
