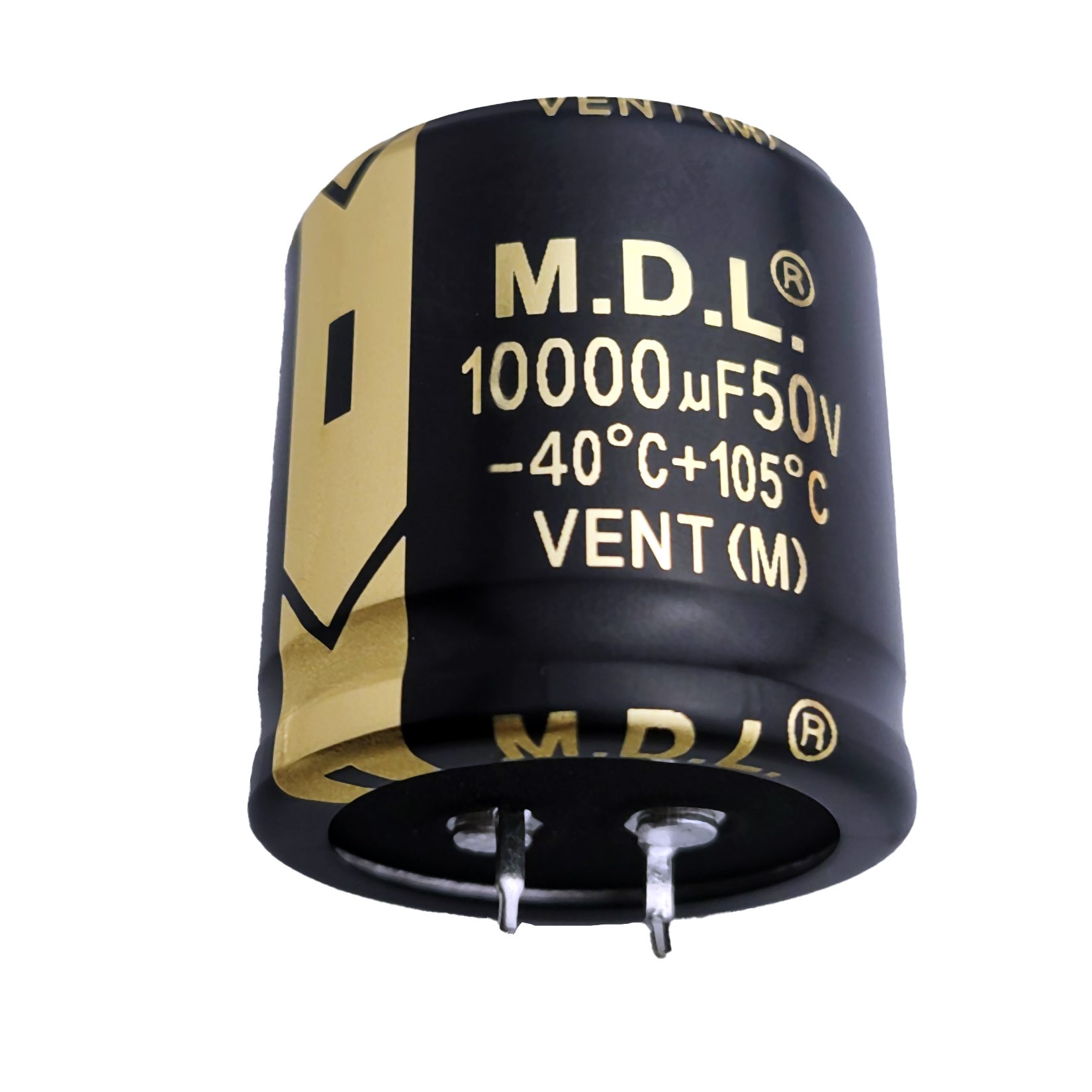

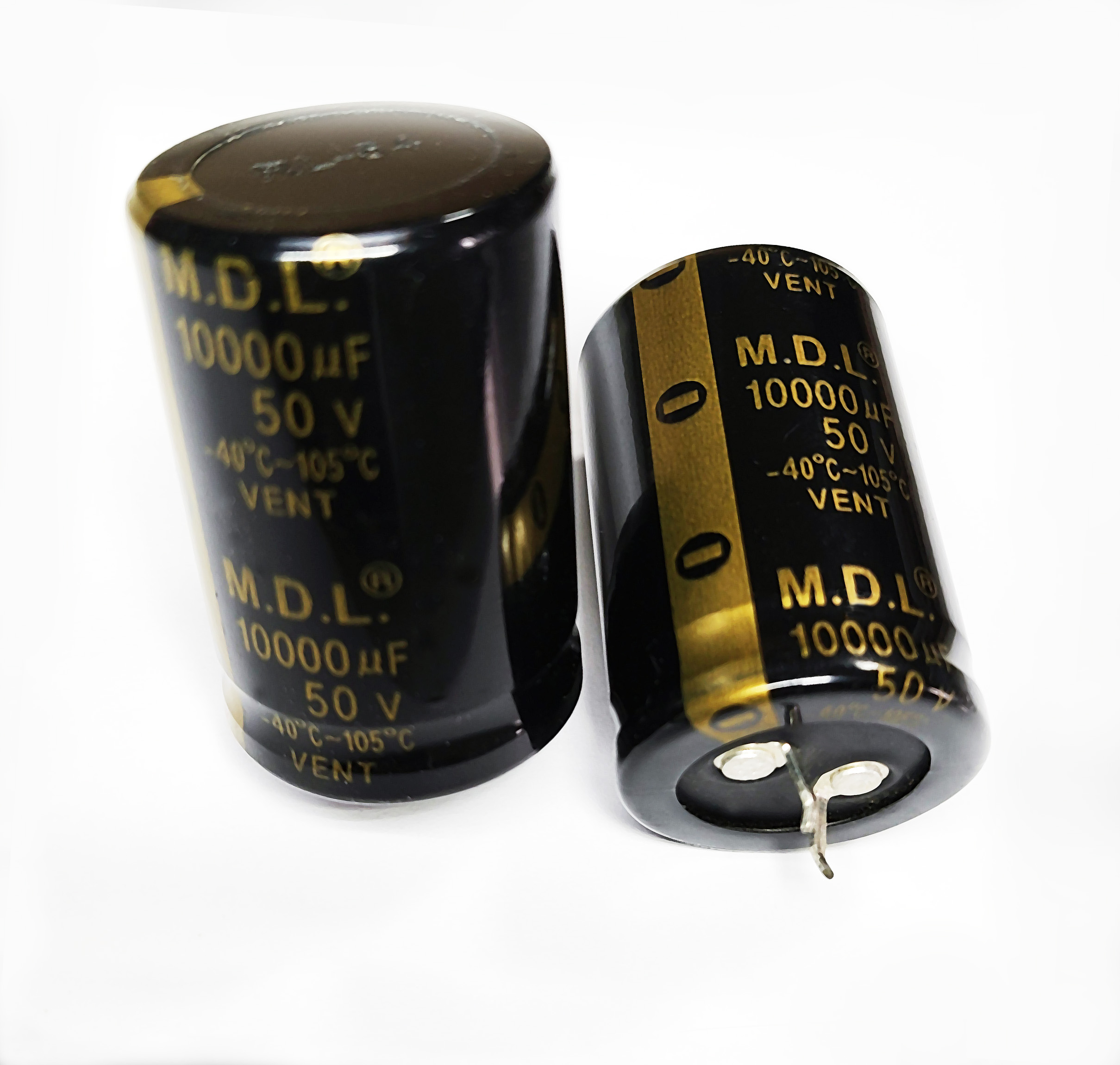

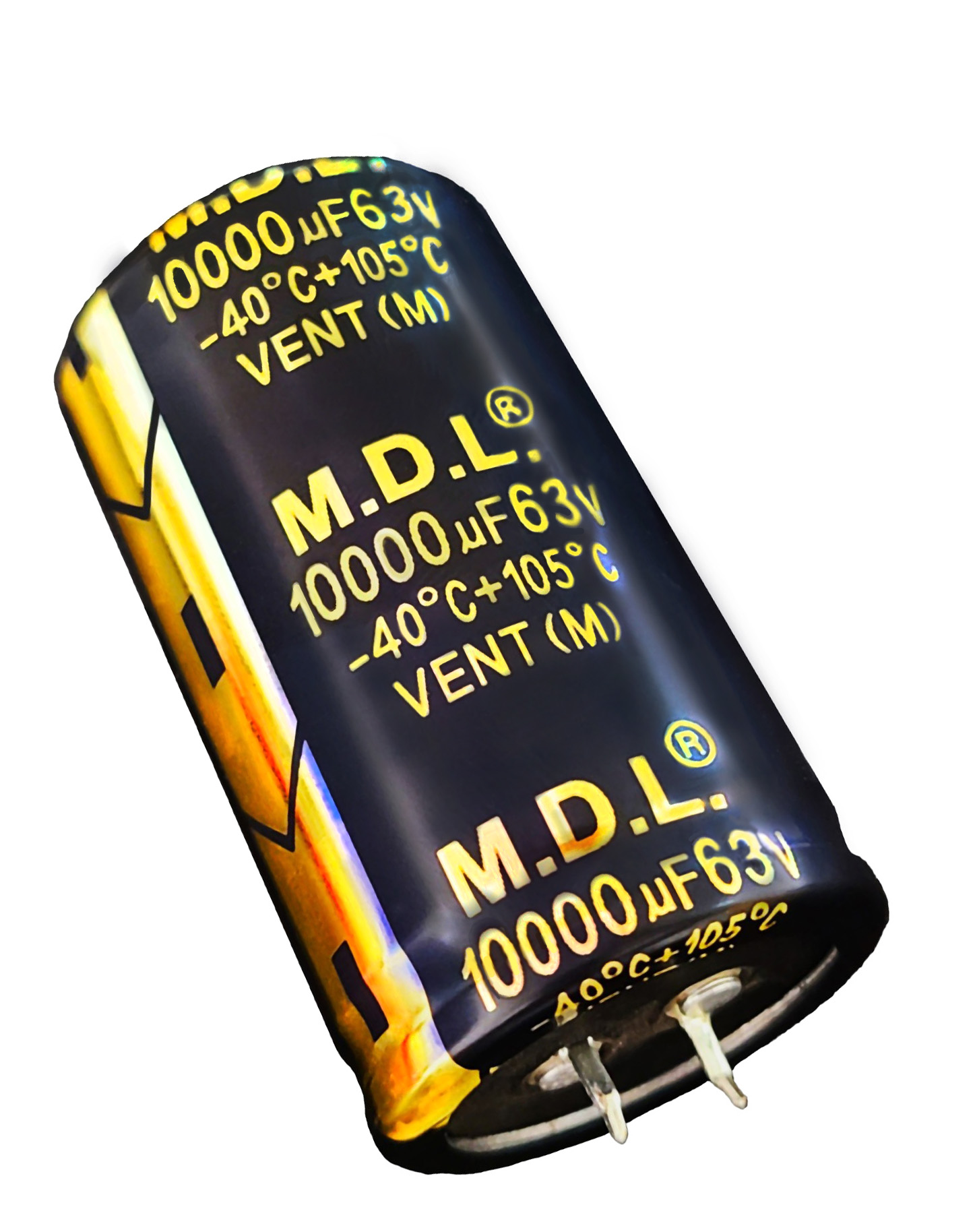

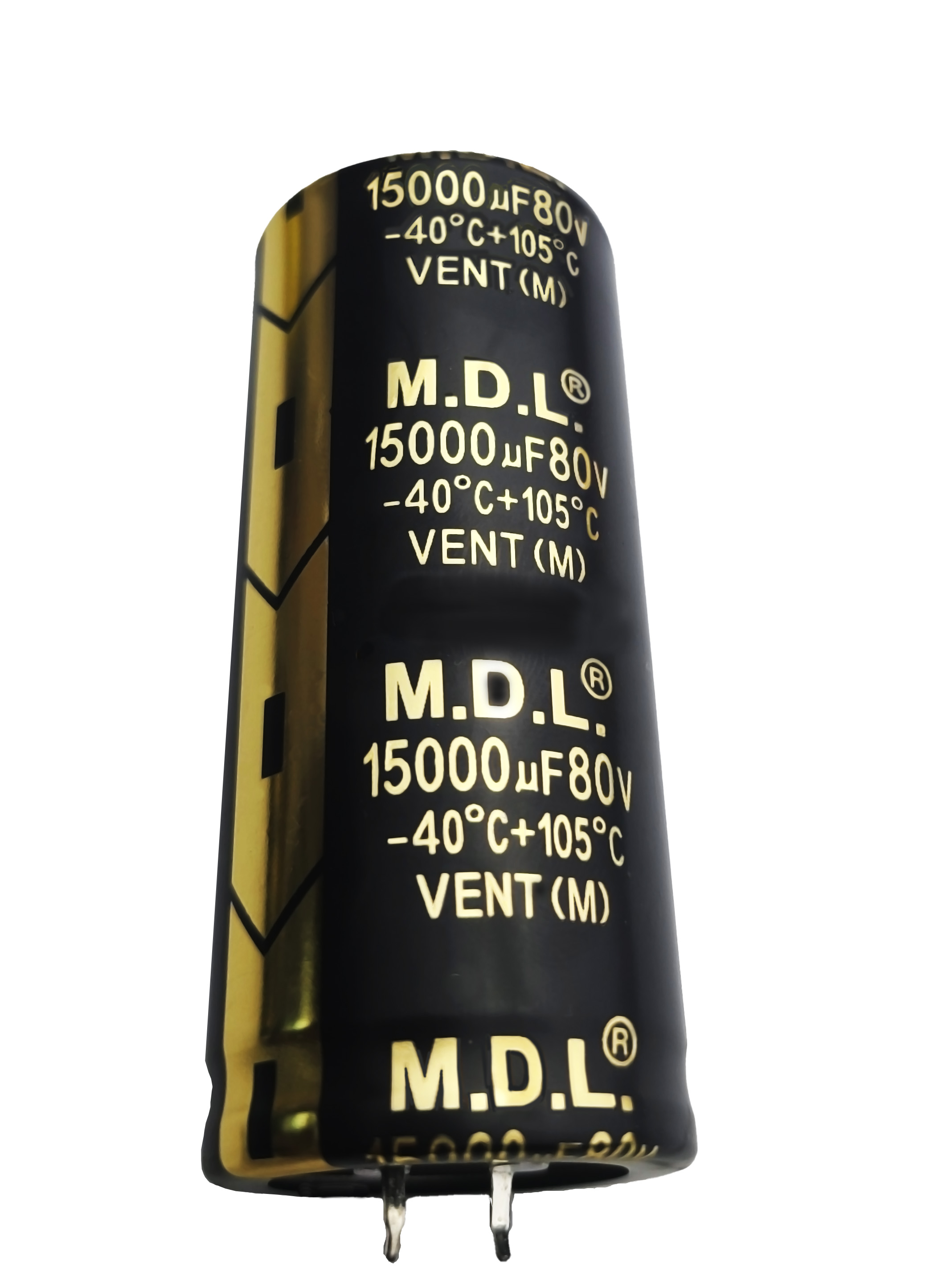

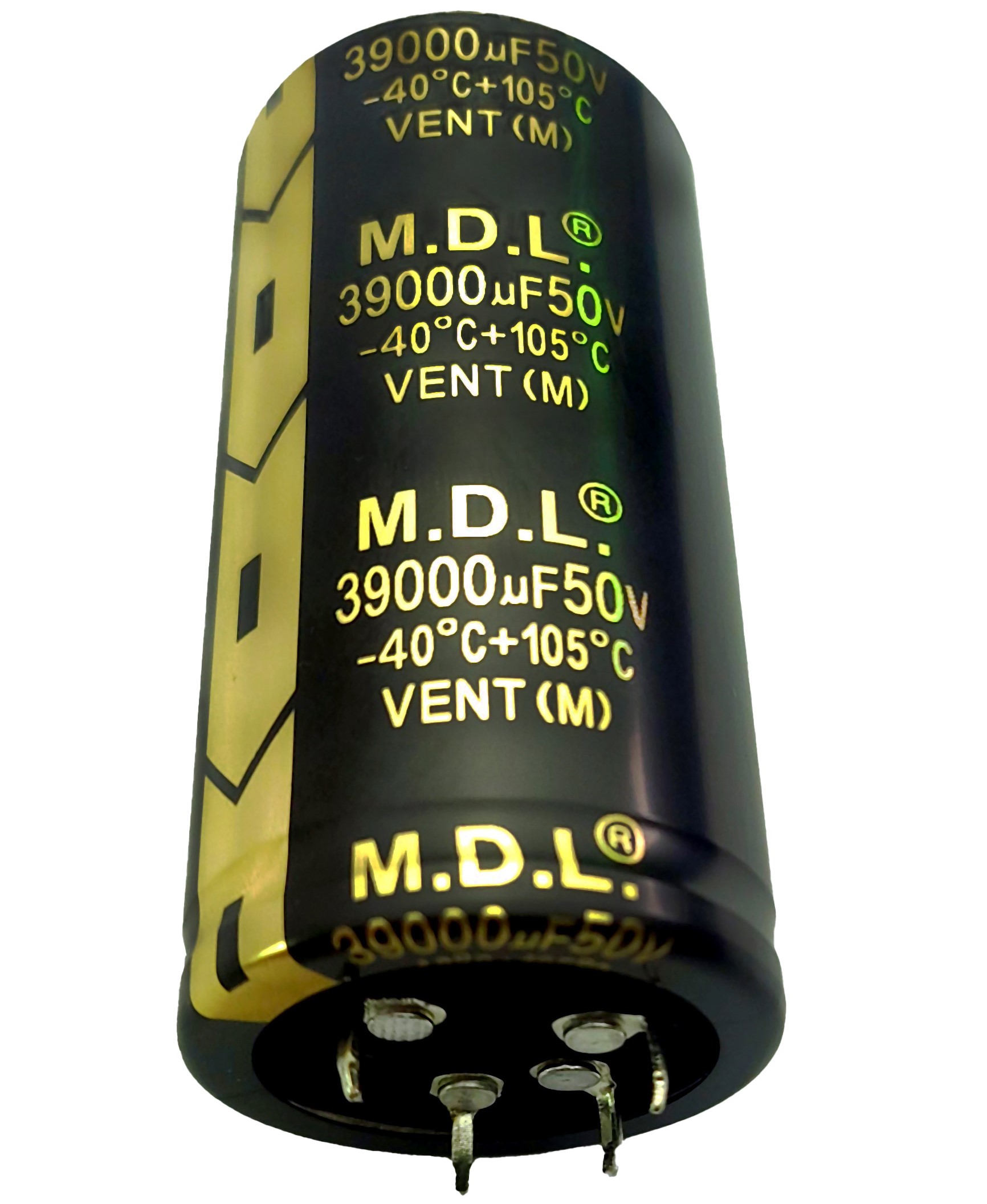

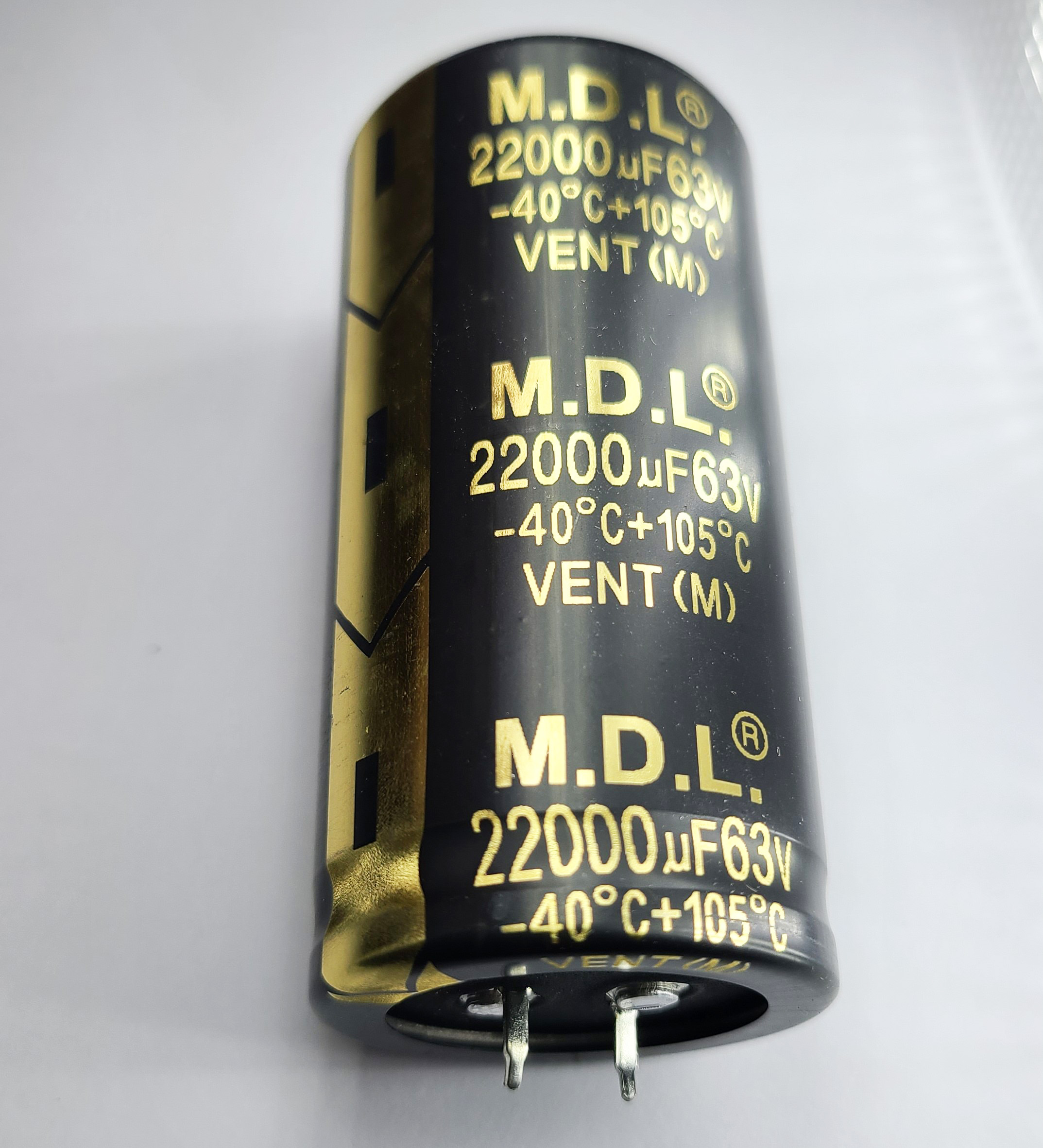

M.D.L. GT Series 105°C Snap-in Terminal Type Aluminum Electrolytic Capacitors
The M.D.L. GT Series is a range of 105°C snap-in aluminum electrolytic capacitors developed for high-temperature, high-ripple and high-reliability power applications.
High-temperature aluminum foil, electrolyte and related materials support stable operation from −40°C to +105°C. Its low impedance, high ripple-current capability and high capacitance make the series suitable for power amplifiers, switching power supplies, UPS systems, frequency converters and industrial power equipment.
- Product Overview
- Specifications
- Features
Product Overview
M.D.L. GT Series 105°C Snap-in Terminal Type Aluminum Electrolytic Capacitors
The GT and GK Series share the same snap-in mounting format and general application areas. Their primary differences are the temperature rating and materials used in production.
The GT Series uses aluminum foil, high-temperature electrolyte, sealing materials and related components selected for 105°C operation. These higher-grade materials increase the manufacturing cost but provide greater thermal margin for equipment with higher internal temperatures, limited cooling or extended operating periods.
Low impedance and high ripple-current capability help reduce internal heating while supporting stable power filtering, energy storage and transient-current delivery. Snap-in terminals simplify PCB positioning and improve assembly efficiency.
Key specifications:
- Operating temperature: −40°C to +105°C
- Working voltage: 10VDC to 500VDC
- Nominal capacitance: 47μF to 20,000μF
- Capacitance tolerance: ±20% at 120Hz and 25°C
- Load life: 2,000 hours at 105°C
Typical applications include:
- High-power audio and power-amplifier supplies
- Professional audio power filtering
- Switching power supplies
- Uninterruptible power supplies
- Inverters and frequency-conversion equipment
- Industrial control and automation systems
- Communication and server power supplies
- Electronic equipment with higher internal temperatures or limited cooling
Specifications
M.D.L. GT Series 105°C Snap-in Terminal Type Aluminum Electrolytic Capacitors

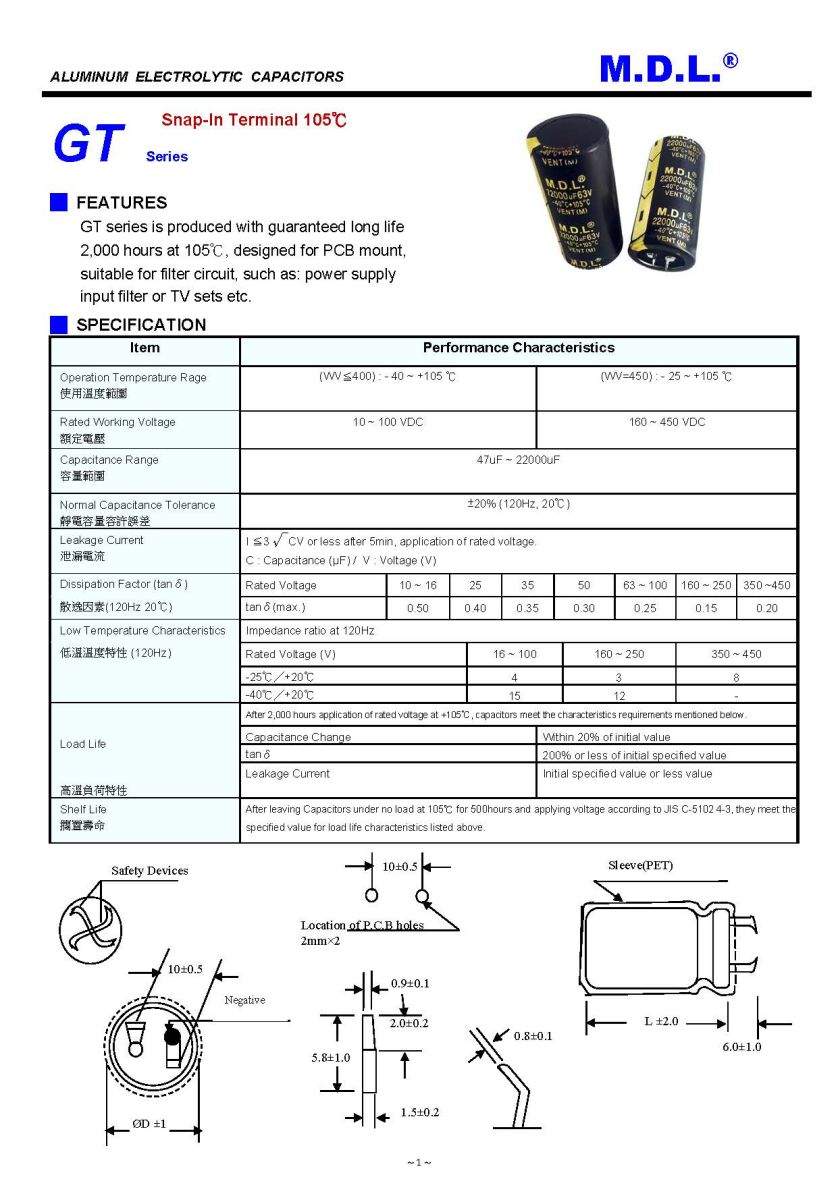

█ SPECIFICATION
| Item | Performance Characteristics | ||||||||||
| Operation Temperature Rage | (WV≦400) : - 40 ~ +105 ℃ | (WV=450) : - 25 ~ +105 ℃ | |||||||||
| Rated Working Voltage | 10 ~ 100 VDC | 160 ~ 450 VDC | |||||||||
| Capacitance Range | 47uF ~ 22000uF | ||||||||||
| Normal Capacitance Tolerance | ±20% (120Hz, 20℃) | ||||||||||
| Leakage Current | I ≦3√CV or less after 5min, application of rated voltage. | ||||||||||
| C : Capacitance (µF) / V : Voltage (V) | |||||||||||
| Dissipation Factor (tanδ) | Rated Voltage | 10~16 | 25 | 35 | 50 | 63~100 | 160~250 | 350~450 | |||
| tanδ(max.) | 0.5 | 0.4 | 0.35 | 0.3 | 0.25 | 0.15 | 0.2 | ||||
| Low Temperature Characteristics | Impedance ratio at 120Hz | ||||||||||
| Rated Voltage (V) | 16 ~ 100 | 160 ~ 250 | 350 ~ 450 | ||||||||
| -25℃／+20℃ | 4 | 3 | 8 | ||||||||
| -40℃／+20℃ | 15 | 12 | - | ||||||||
| Load Life | After 2,000 hours application of rated voltage at +105℃, capacitors meet the characteristics requirements mentioned below. | ||||||||||
| Capacitance Change | Within 20% of initial value | ||||||||||
| tanδ | 200% or less of initial specified value | ||||||||||
| Leakage Current | Initial specified value or less value | ||||||||||
| Shelf Life | After leaving Capacitors under no load at 105℃ for 500hours and applying voltage according to JIS C-5102 4-3, they meet the specified value for load life characteristics listed above. | ||||||||||

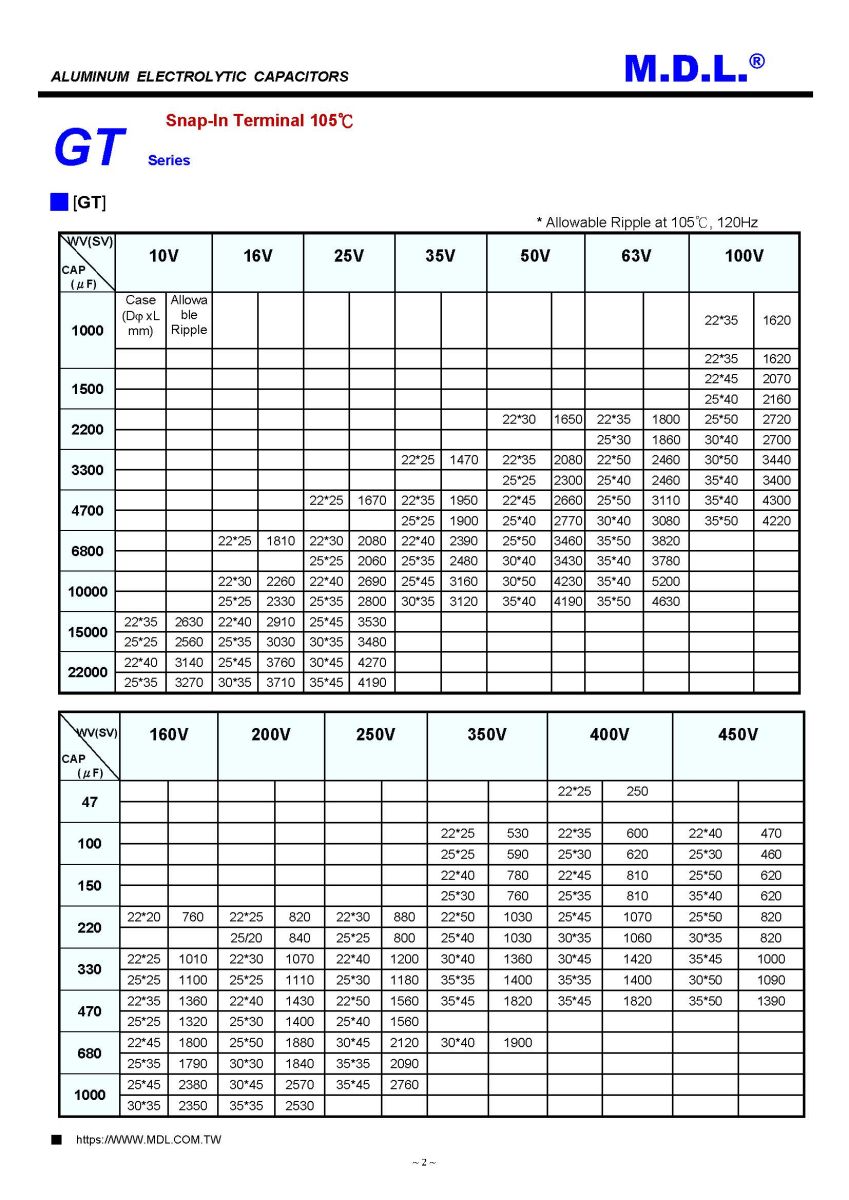

| █ [GT] * Allowable Ripple at 105℃, 120Hz | ||||||||||||||
| WV(SV) | 10V | 16V | 25V | 35V | 50V | 63V | 100V | |||||||
| Cap / (μF) | ||||||||||||||
| 1000 | Case | Allowable Ripple | 22*35 | 1620 | ||||||||||
| (D¢ xL mm) | ||||||||||||||
| 22*35 | 1620 | |||||||||||||
| 1500 | 22*45 | 2070 | ||||||||||||
| 25*40 | 2160 | |||||||||||||
| 2200 | 22*30 | 1650 | 22*35 | 1800 | 25*50 | 2720 | ||||||||
| 25*30 | 1860 | 30*40 | 2700 | |||||||||||
| 3300 | 22*25 | 1470 | 22*35 | 2080 | 22*50 | 2460 | 30*50 | 3440 | ||||||
| 25*25 | 2300 | 25*40 | 2460 | 35*40 | 3400 | |||||||||
| 4700 | 22*25 | 1670 | 22*35 | 1950 | 22*45 | 2660 | 25*50 | 3110 | 35*40 | 4300 | ||||
| 25*25 | 1900 | 25*40 | 2770 | 30*40 | 3080 | 35*50 | 4220 | |||||||
| 6800 | 22*25 | 1810 | 22*30 | 2080 | 22*40 | 2390 | 25*50 | 3460 | 35*50 | 3820 | ||||
| 25*25 | 2060 | 25*35 | 2480 | 30*40 | 3430 | 35*40 | 3780 | |||||||
| 10000 | 22*30 | 2260 | 22*40 | 2690 | 25*45 | 3160 | 30*50 | 4230 | 35*40 | 5200 | ||||
| 25*25 | 2330 | 25*35 | 2800 | 30*35 | 3120 | 35*40 | 4190 | 35*50 | 4630 | |||||
| 15000 | 22*35 | 2630 | 22*40 | 2910 | 25*45 | 3530 | ||||||||
| 25*25 | 2560 | 25*35 | 3030 | 30*35 | 3480 | |||||||||
| 22000 | 22*40 | 3140 | 25*45 | 3760 | 30*45 | 4270 | ||||||||
| 25*35 | 3270 | 30*35 | 3710 | 35*45 | 4190 | |||||||||
| WV(SV) | 160V | 200V | 250V | 350V | 400V | 450V | ||||||||
| Cap / (μF) | ||||||||||||||
| 47 | 22*25 | 250 | ||||||||||||
| 100 | 22*25 | 530 | 22*35 | 600 | 22*40 | 470 | ||||||||
| 25*25 | 590 | 25*30 | 620 | 25*30 | 460 | |||||||||
| 150 | 22*40 | 780 | 22*45 | 810 | 25*50 | 620 | ||||||||
| 25*30 | 760 | 25*35 | 810 | 35*40 | 620 | |||||||||
| 220 | 22*20 | 760 | 22*25 | 820 | 22*30 | 880 | 22*50 | 1030 | 25*45 | 1070 | 25*50 | 820 | ||
| 25/20 | 840 | 25*25 | 800 | 25*40 | 1030 | 30*35 | 1060 | 30*35 | 820 | |||||
| 330 | 22*25 | 1010 | 22*30 | 1070 | 22*40 | 1200 | 30*40 | 1360 | 30*45 | 1420 | 35*45 | 1000 | ||
| 25*25 | 1100 | 25*25 | 1110 | 25*30 | 1180 | 35*35 | 1400 | 35*35 | 1400 | 30*50 | 1090 | |||
| 470 | 22*35 | 1360 | 22*40 | 1430 | 22*50 | 1560 | 35*45 | 1820 | 35*45 | 1820 | 35*50 | 1390 | ||
| 25*25 | 1320 | 25*30 | 1400 | 25*40 | 1560 | |||||||||
| 680 | 22*45 | 1800 | 25*50 | 1880 | 30*45 | 2120 | 30*40 | 1900 | ||||||
| 25*35 | 1790 | 30*30 | 1840 | 35*35 | 2090 | |||||||||
| 1000 | 25*45 | 2380 | 30*45 | 2570 | 35*45 | 2760 | ||||||||
| 30*35 | 2350 | 35*35 | 2530 | |||||||||||
Features
- 105°C High-Temperature Design
Operating temperature range of −40°C to +105°C for demanding thermal environments. - High-Temperature Aluminum Foil and Electrolyte
Aluminum foil, electrolyte and related materials are selected for 105°C operation. - Low Impedance and High Ripple Capability
Helps reduce internal loss and temperature rise in high-load power circuits. - Stable Energy Storage and Filtering
Suitable for rectifier smoothing, DC-link, power filtering and transient-energy delivery. - Snap-in Terminals
Provide secure PCB positioning for convenient soldering and efficient assembly. - High Capacitance and Wide Voltage Range
Available from 47μF to 20,000μF and 10VDC to 500VDC. - 2,000-Hour High-Temperature Load Endurance
Qualified through a 2,000-hour load-life test at 105°C under specified rated conditions. - Greater Thermal Margin
Suitable for high ambient temperatures, restricted cooling and continuous operation. - Multiple Sizes and Custom Options
Different capacitance values, voltages, case sizes, terminal spacing and special characteristics are available. - OEM and ODM Service
Custom product specifications, markings and branding can be discussed upon request.
