M.D.L. is a professional manufacturer of high-quality NP and BP non-polar aluminum electrolytic capacitors, available in various axial and radial configurations.
Premium Sound Experience - Non-Polarized Capacitors for Crossovers and Car Speaker Tweeters
Excellence in Quality, Elevating Your Music Enjoyment
The entire series is made of Japanese imported aluminum foil, ensuring stable quality, excellent characteristics, and long lifespan.
Product mainly used: Crossover Network,audio converters and dividers (partials),
Audio amp, automotive electronics products, speaker, Horn.
- Product Overview
- Specifications
- Features
Product Overview

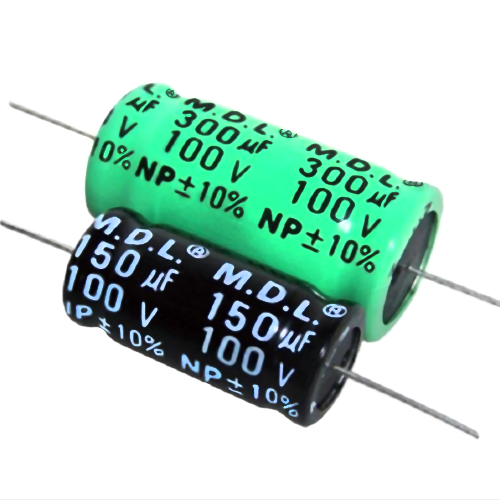

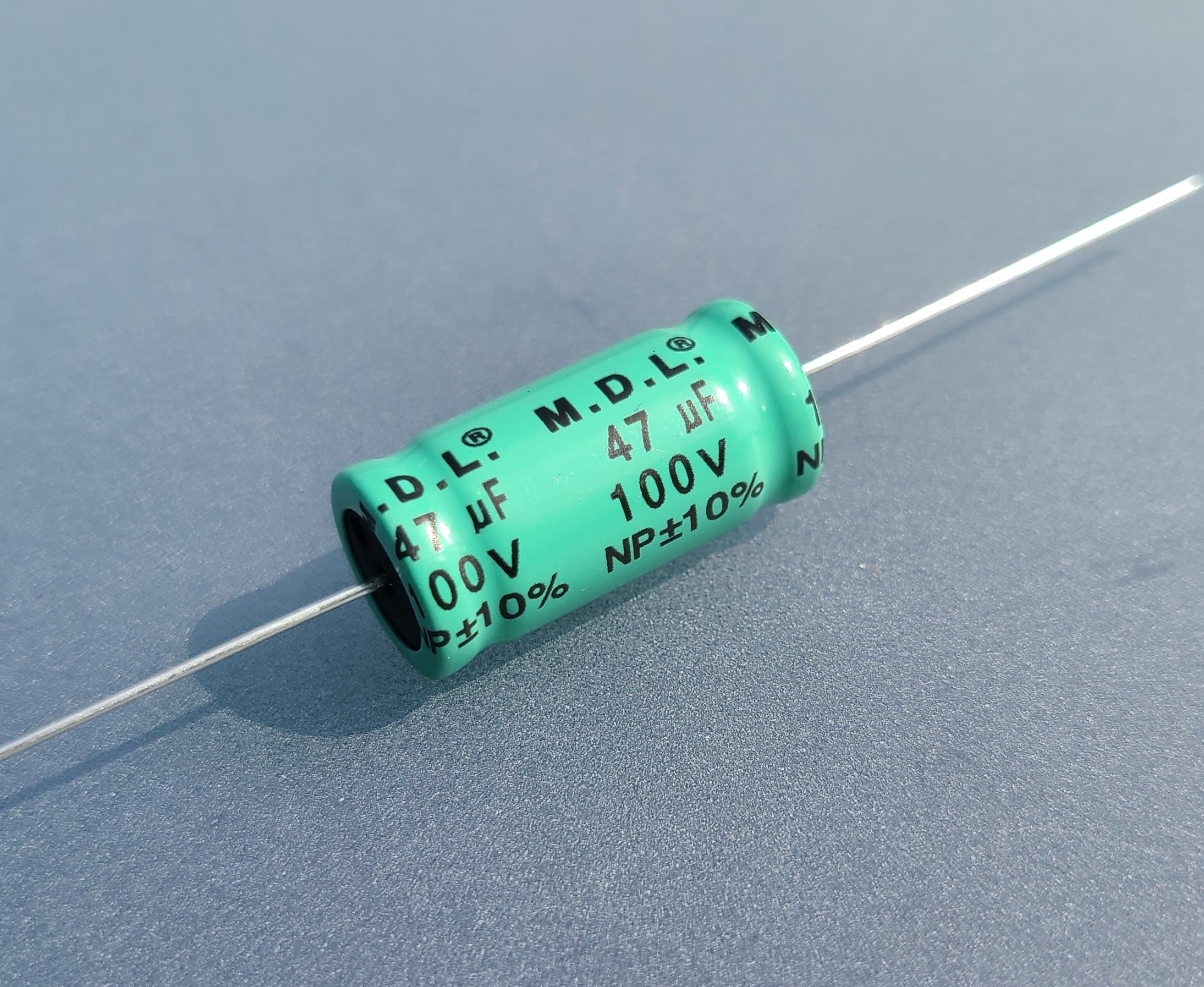

This NP non-polar aluminum electrolytic capacitor features a horizontal axial design and is commonly used in audio crossover networks.

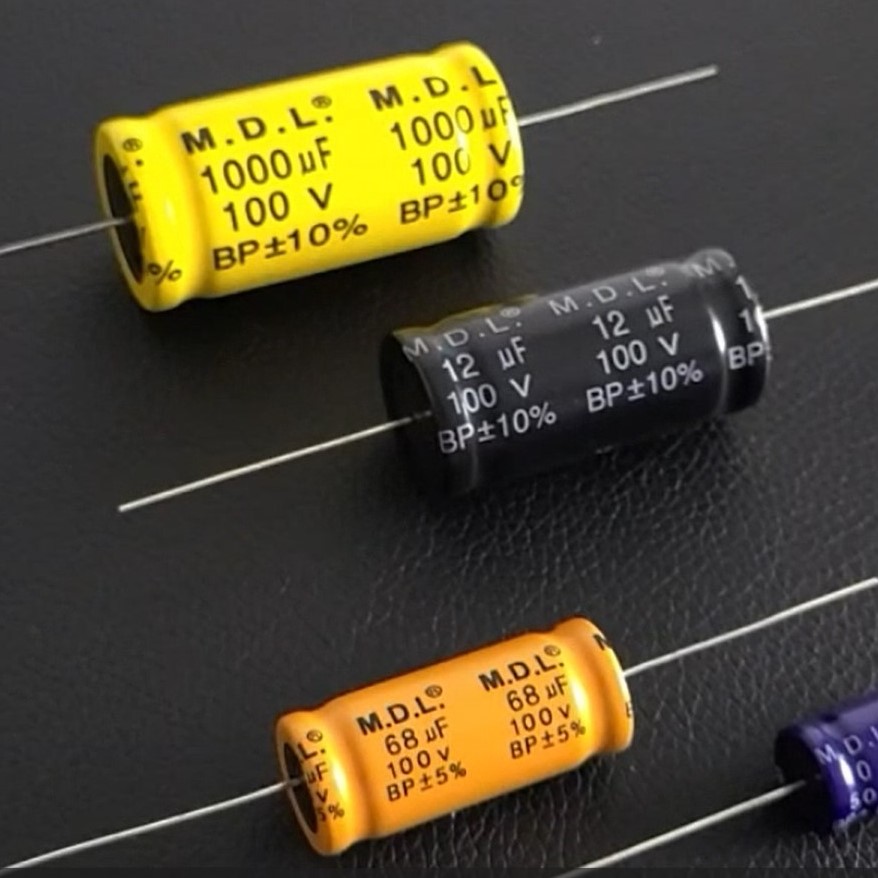

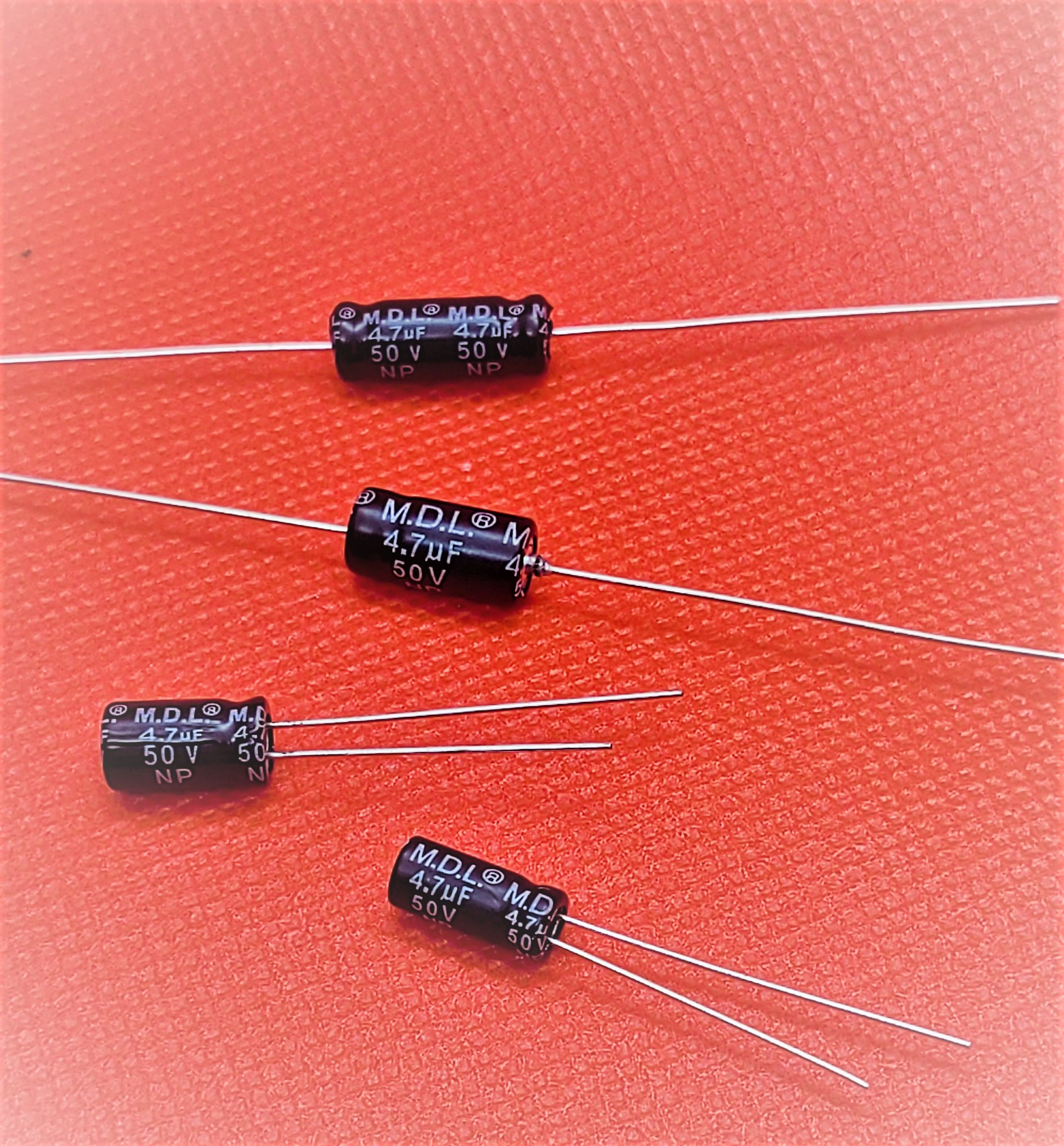

M.D.L.'s NP and BP non-polar aluminum electrolytic capacitors are designed for audio crossover networks, car speaker tweeters, and other audio applications. They provide stable electrical performance and are available in various capacitance, voltage, and dimensional configurations to meet different design requirements.
Features & Advantages:
Quality Materials: The series uses carefully selected aluminum foil and production materials to provide stable electrical characteristics and reliable performance.
Audio Performance: These non-polar capacitors are suitable for audio crossover networks and car speaker tweeters, providing stable signal coupling and filtering performance in audio applications.
Stable Performance: Each capacitor is tested to ensure consistent electrical characteristics and reliable performance under specified operating conditions.
We can manufacture various capacitance, voltage, tolerance, and dimensional specifications according to customer requirements. OEM and ODM projects are welcome.
Specifications

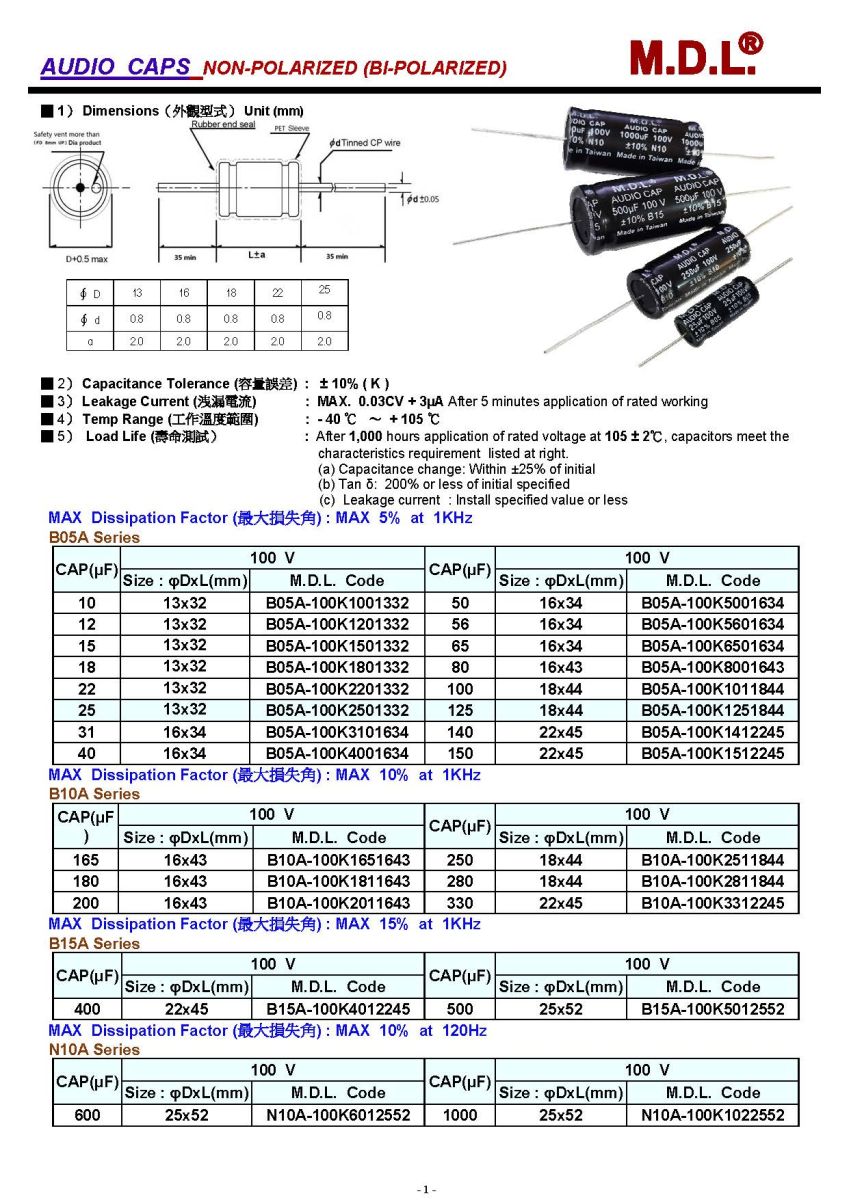

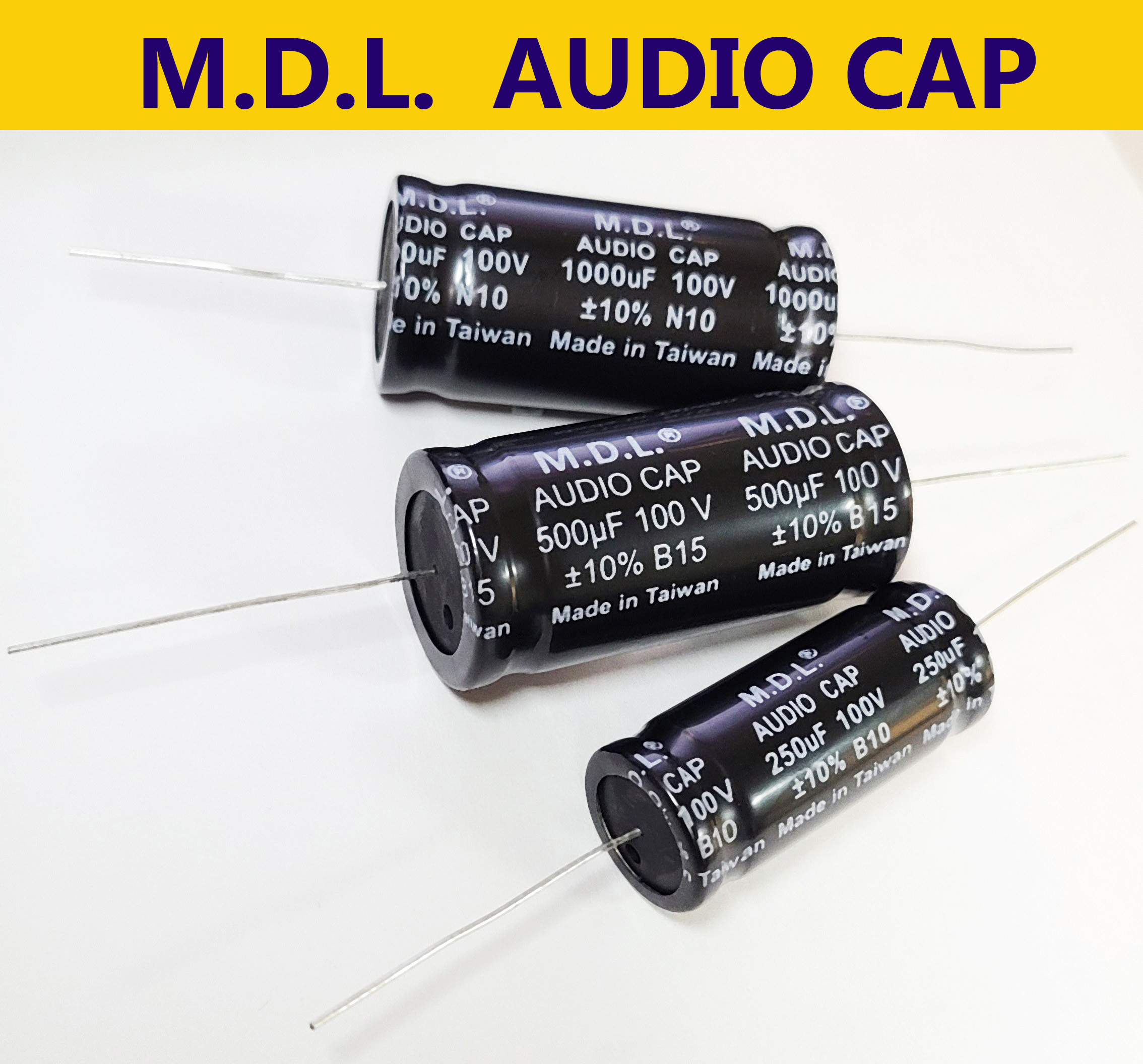

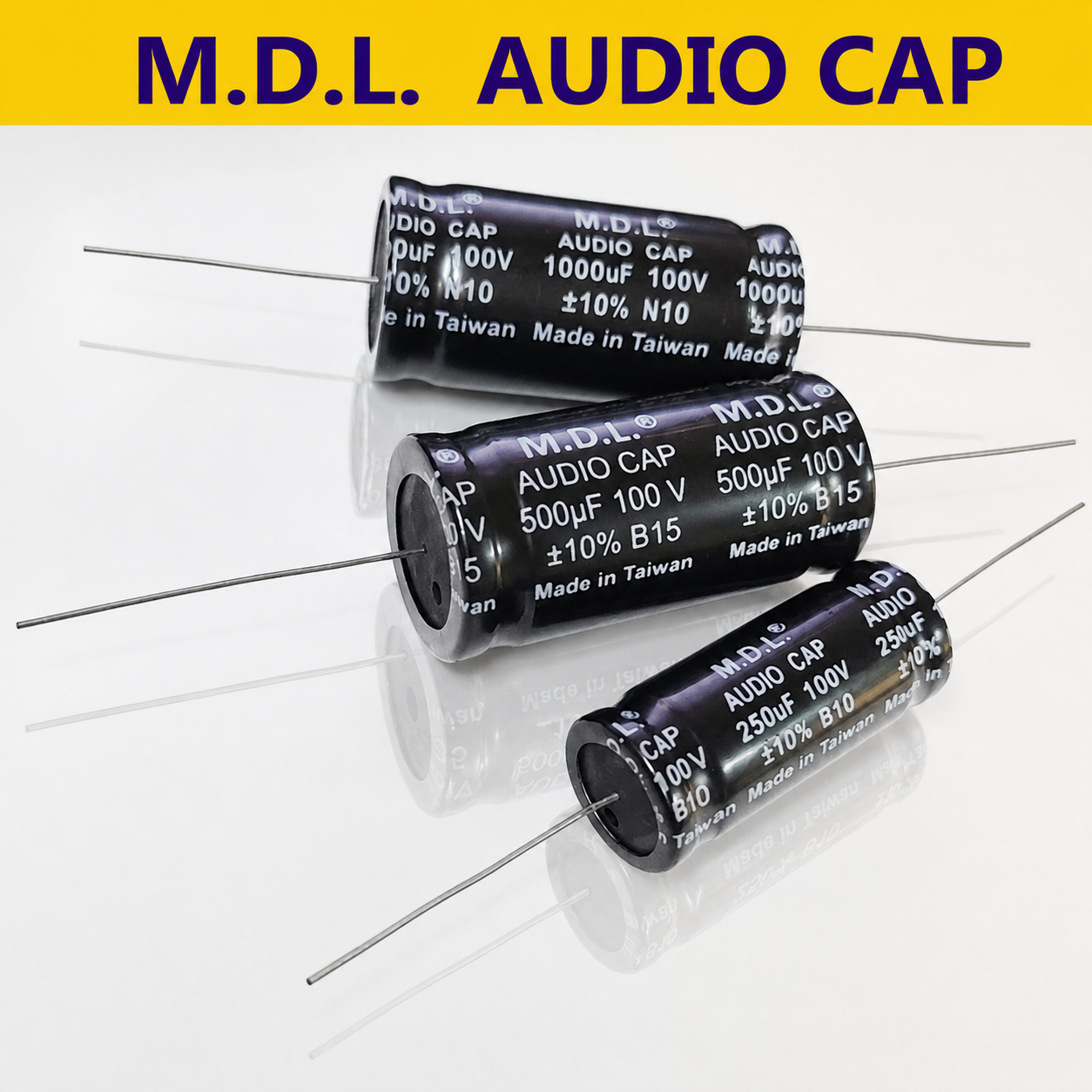

AUDIO CAPS
NON-POLARIZED (BI-POLARIZED) Aluminum Electrolytic Capacitors.
MAX Dissipation Factor : MAX 5% at 1KHz

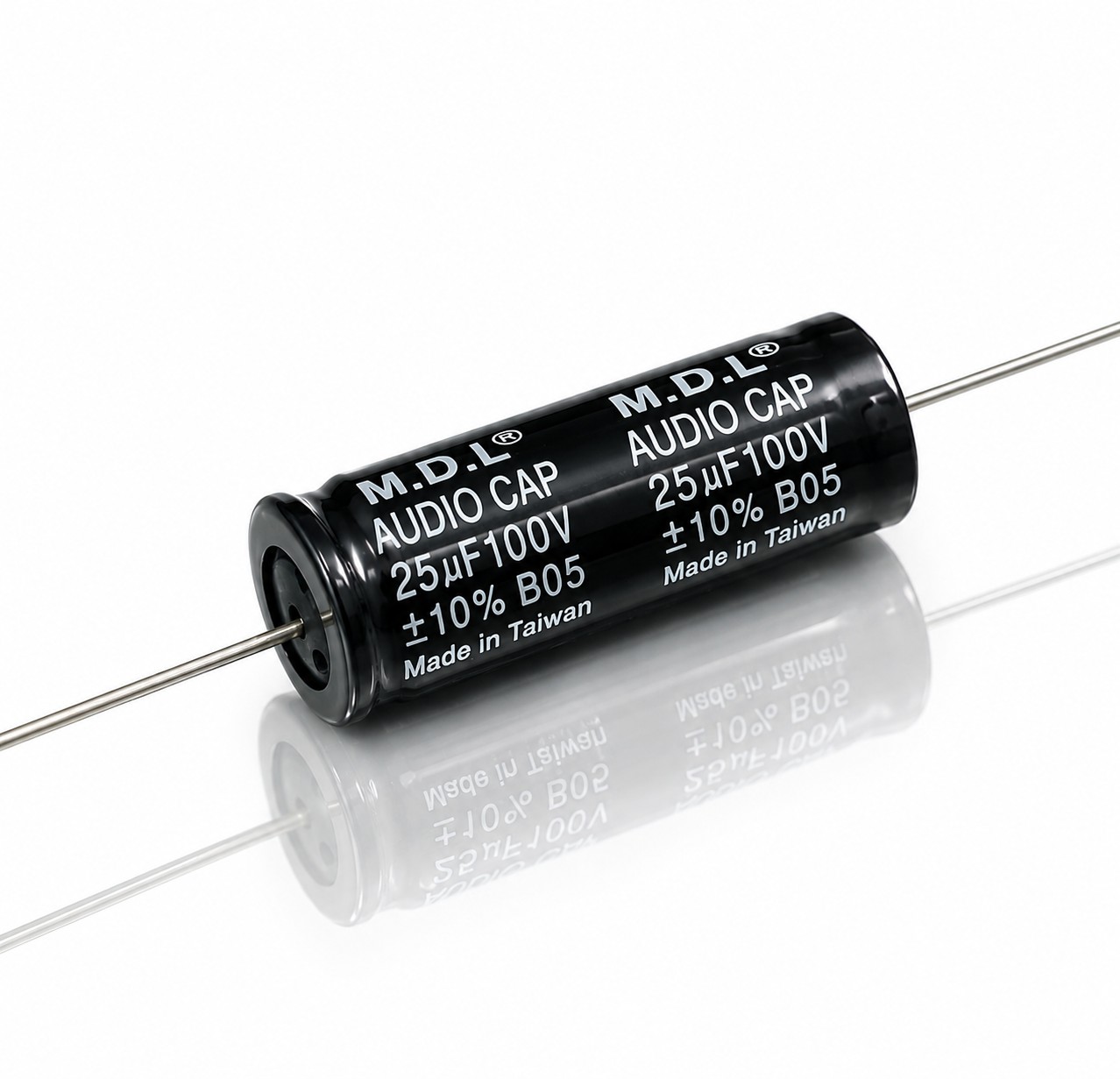

B05A Series
| CAP(µF) | 100 VDC | CAP(µF) | 100 VDC | ||
| Size : φDxL(mm) | M.D.L. Code | Size : φDxL(mm) | M.D.L. Code | ||
|
10 |
13x32 |
B05A-100K1001332 |
50 |
16x34 |
B05A-100K5001634 |
|
12 |
13x32 |
B05A-100K1201332 |
56 |
16x34 |
B05A-100K5601634 |
|
15 |
13x32 |

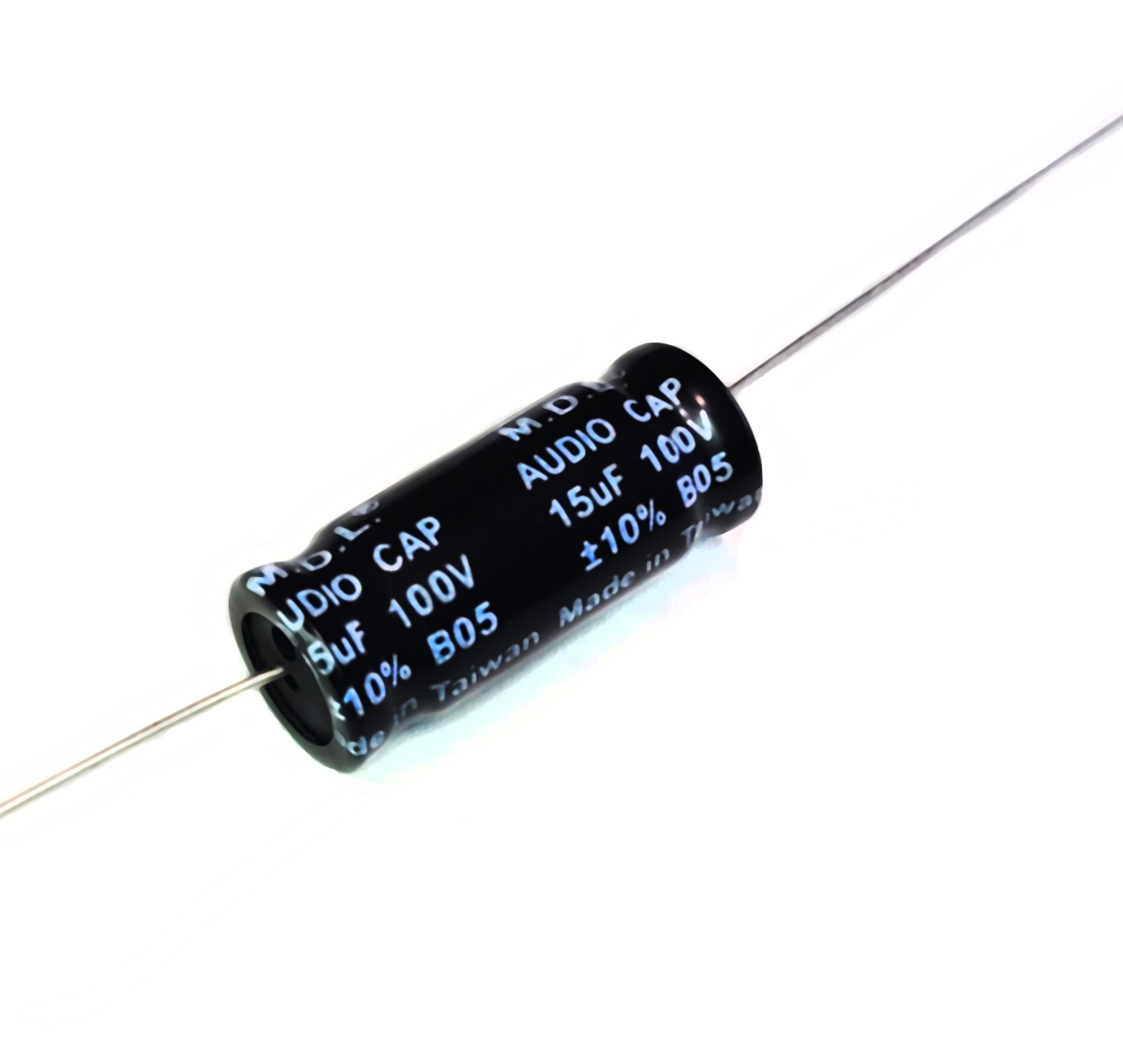

B05A-100K1501332 |
65 |
16x34 |
B05A-100K6501634 |
|
18 |
13x32 |
B05A-100K1801332 |
80 |
16x43 |
B05A-100K8001643 |
|
22 |
13x32 |
B05A-100K2201332 |
100 |
18x44 |
B05A-100K1011844 |
|
25 |
13x32 |

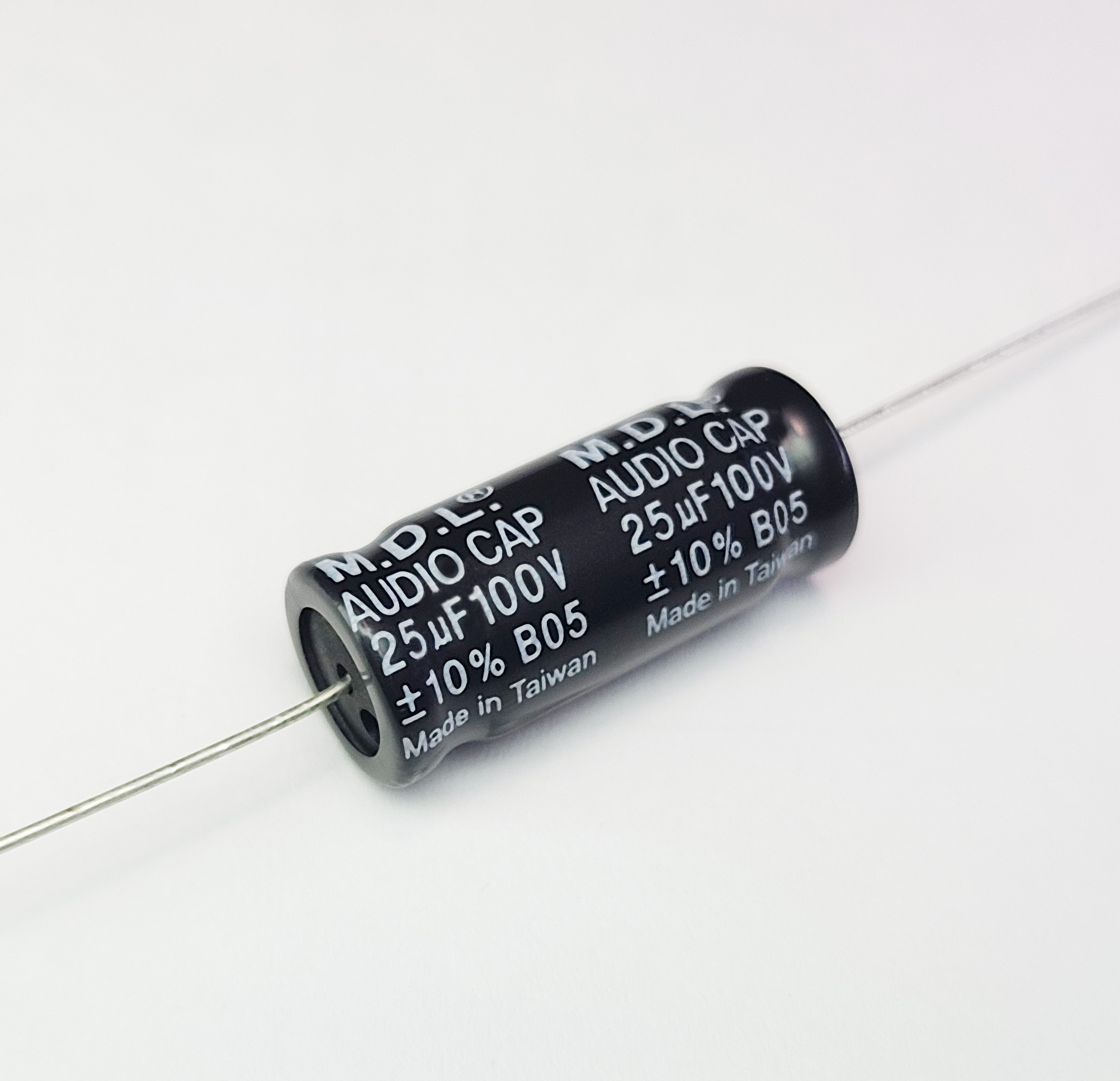

B05A-100K2501332 |
125 |
18x44 |
B05A-100K1251844 |
|
31 |
16x34 |
B05A-100K3101634 |
140 |
22x45 |
B05A-100K1412245 |
|
40 |
16x34 |
B05A-100K4001634 |
150 |
22x45 |
B05A-100K1512245 |
MAX Dissipation Factor : MAX 10% at 1KHz

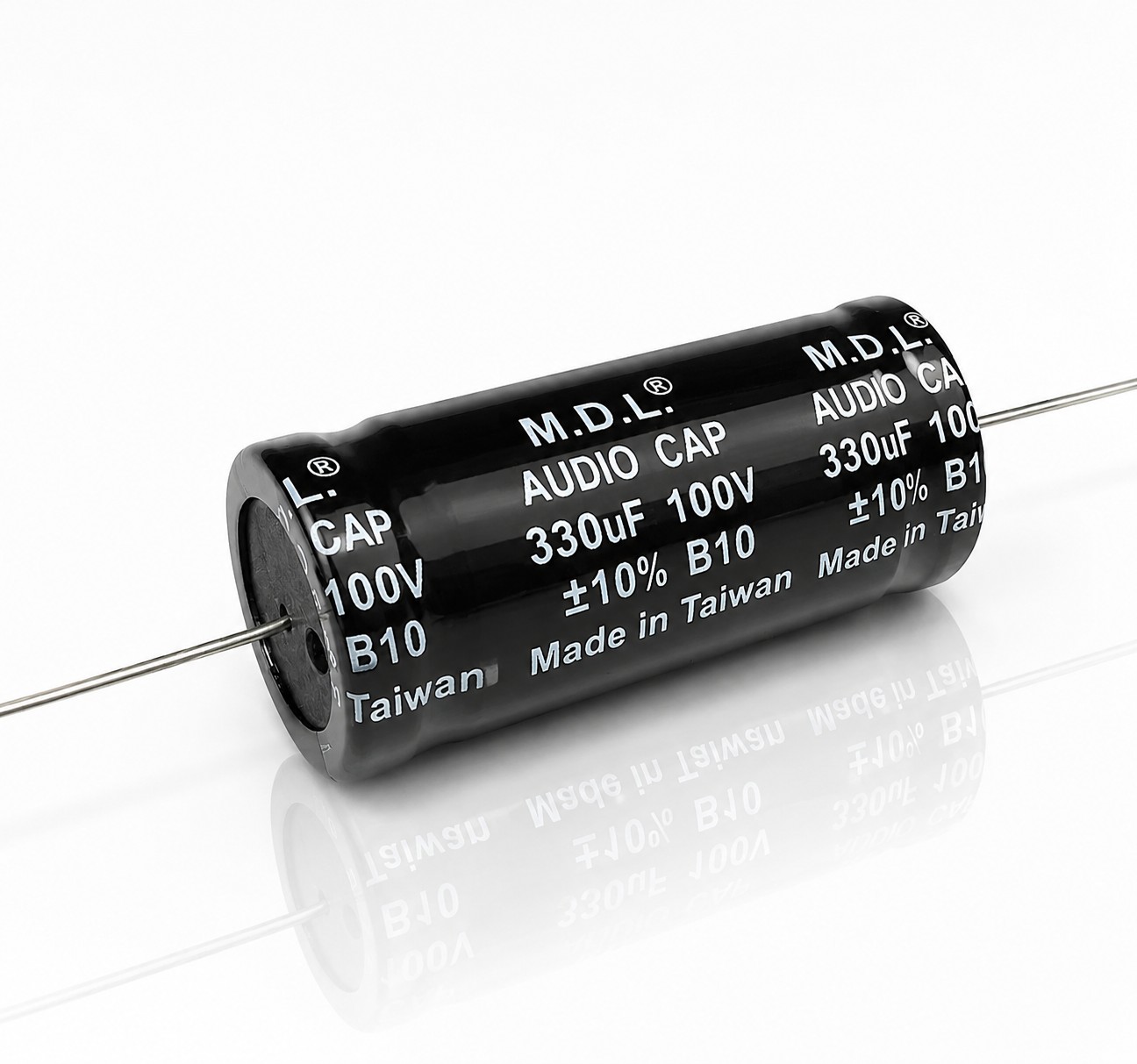

B10A Series
| CAP(µF) | 100 VDV | CAP(µF) | 100 VDC | ||
| Size : φDxL(mm) | M.D.L. Code | Size : φDxL(mm) | M.D.L. Code | ||
|
165 |
16x43 |
B10A-100K1651643 |
250 |
18x44 |
B10A-100K2511844 |
|
180 |
16x43 |
B10A-100K1811643 |
280 |
18x44 |
B10A-100K2811844 |
|
200 |
16x43 |
B10A-100K2011643 |
330 |
22x45 |

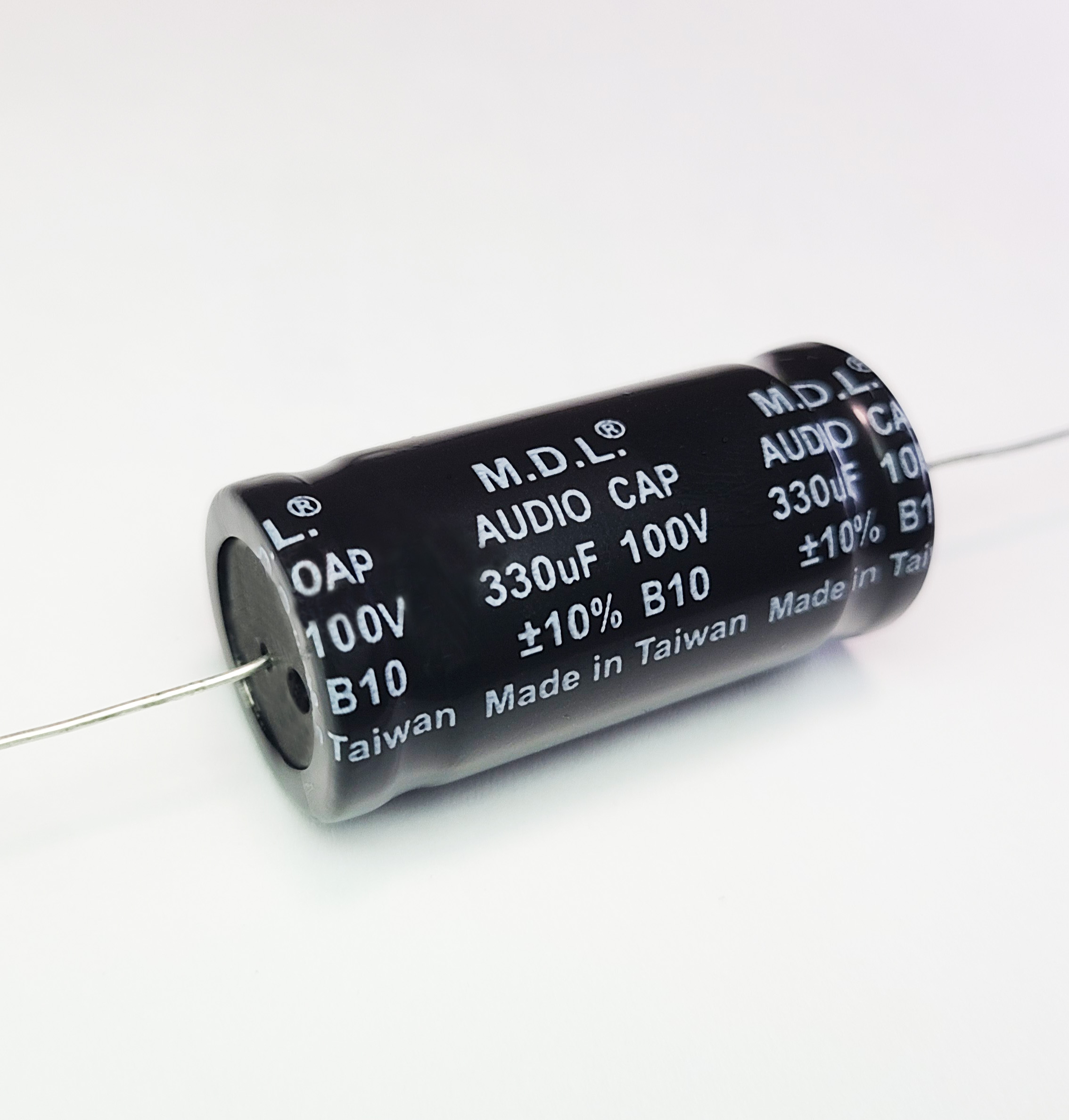

B10A-100K3312245 |
MAX Dissipation Factor : MAX 15% at 1KHz
B15A Series
| CAP(µF) | 100 VDC | CAP(µF) | 100 VDC | ||
| Size : φDxL(mm) | M.D.L. Code | Size : φDxL(mm) | M.D.L. Code | ||
|
400 |
22x45 |
B15A-100K4012245 |
500 |
25x52 |
B15A-100K5012552 |
MAX Dissipation Factor : MAX 10% at 120Hz
N10A Series
| CAP(µF) | 100 VDV | CAP(µF) | 100 VDC | ||
| Size : φDxL(mm) | M.D.L. Code | Size : φDxL(mm) | M.D.L. Code | ||
|
600 |
25x52 |
N10A-100K6012552 |
1,000 |
25x52 |

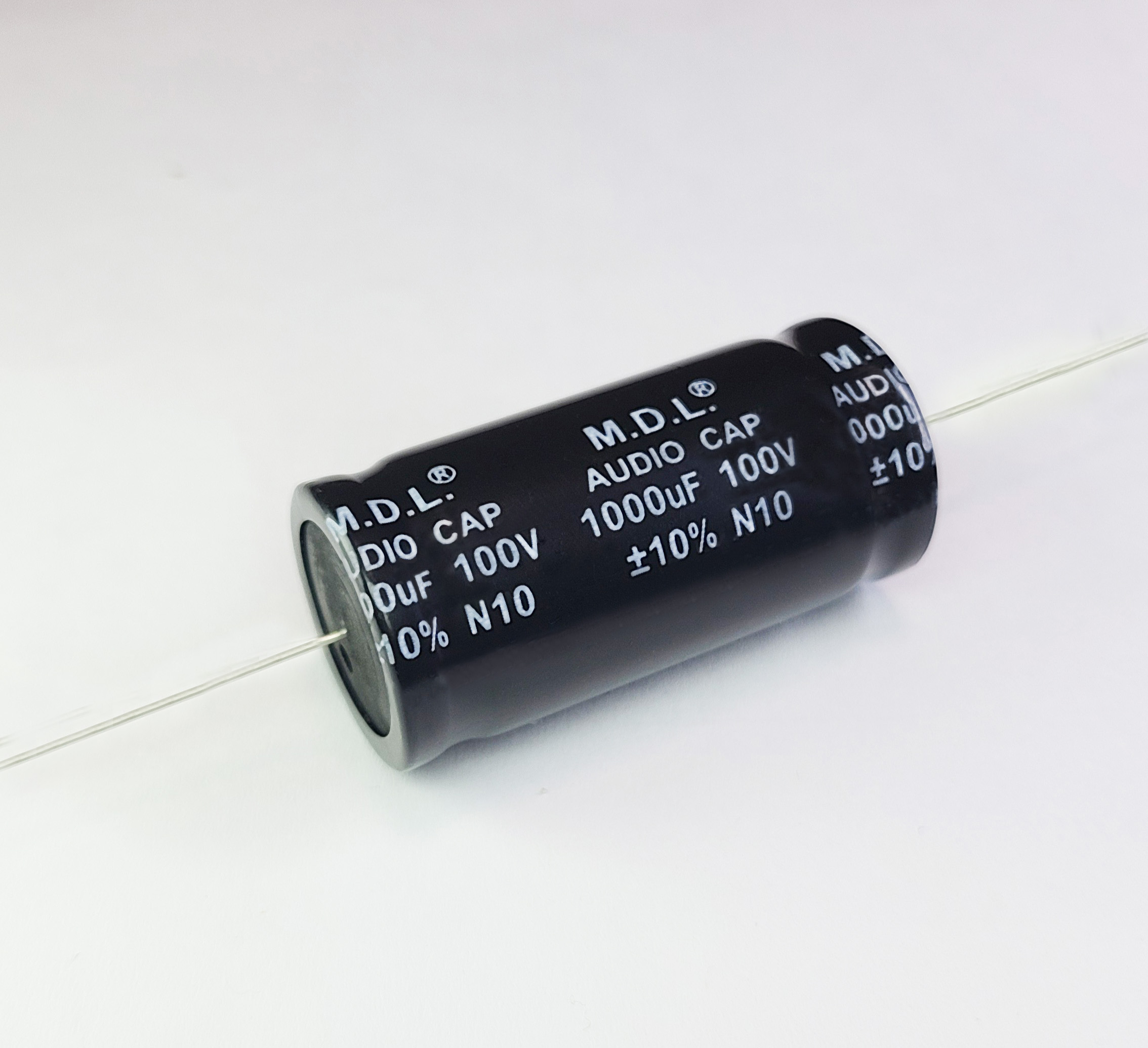

N10A-100K1022552 |
■ 1）Capacitance Tolerance : ± 10% ( K )
■2）Leakage Current : MAX. 0.03CV + 3µA After 5 minutes application of rated working
■ 4）Temp Range : - 40 ℃ ～ + 105 ℃
■ 4） Load Life: After 1,000 hours application of rated voltage at 105 ± 2℃, capacitors meet the characteristics requirement listed at right.
(a) Capacitance change: Within ±25% of initial
(b) Tan δ: 200% or less of initial specified
(c) Leakage current : Install specified value or less
Features
Applications:

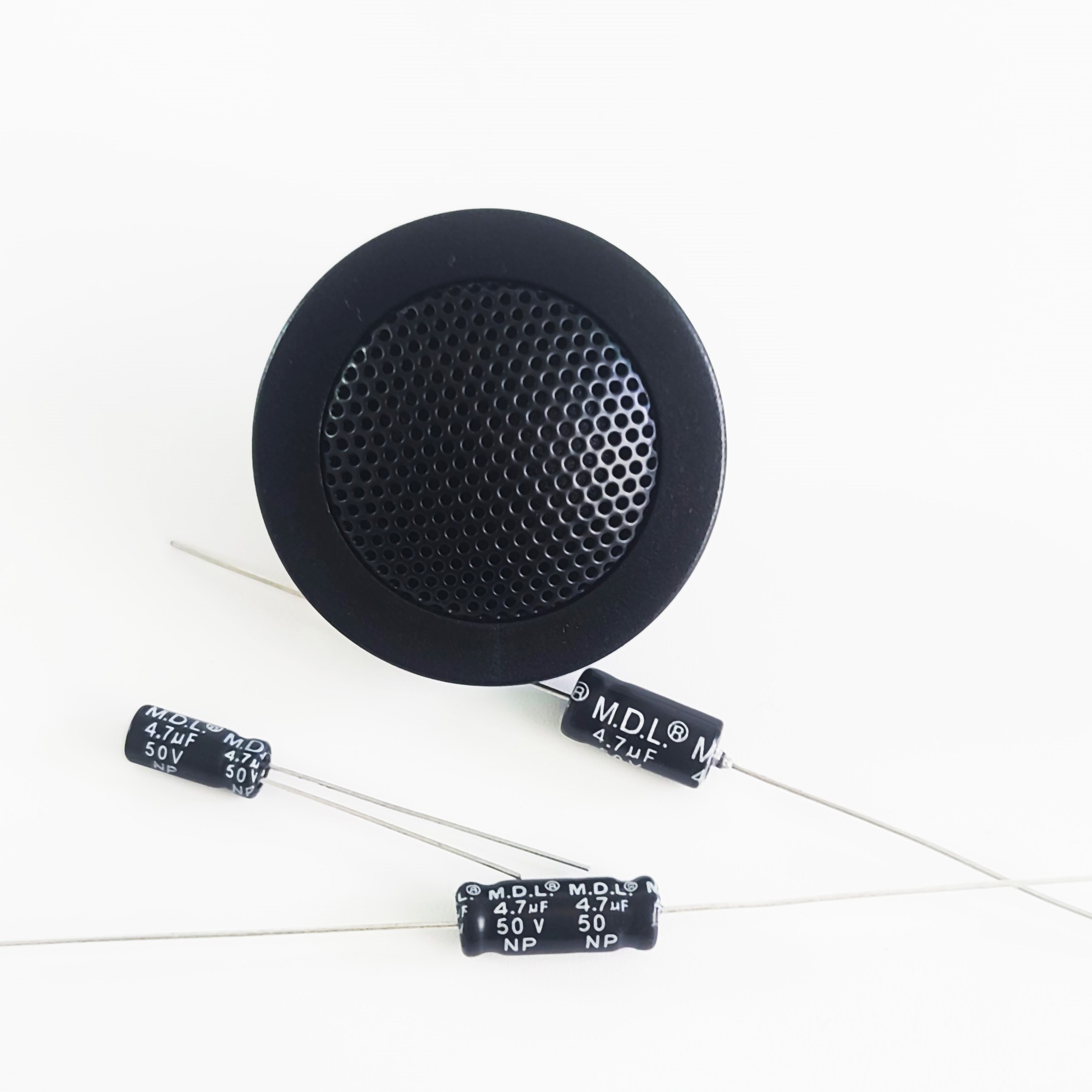

Car Audio Systems: Suitable for car speaker crossover networks, tweeters, and other automotive audio applications where non-polar capacitors are required.
Audio Crossovers: Designed for speaker crossover networks, including tweeter and mid-range applications, where reliable non-polar capacitor performance is required.
For product information, technical requirements, samples, or quotations, please contact us.
Custom specifications are available to meet specific application and design requirements.
