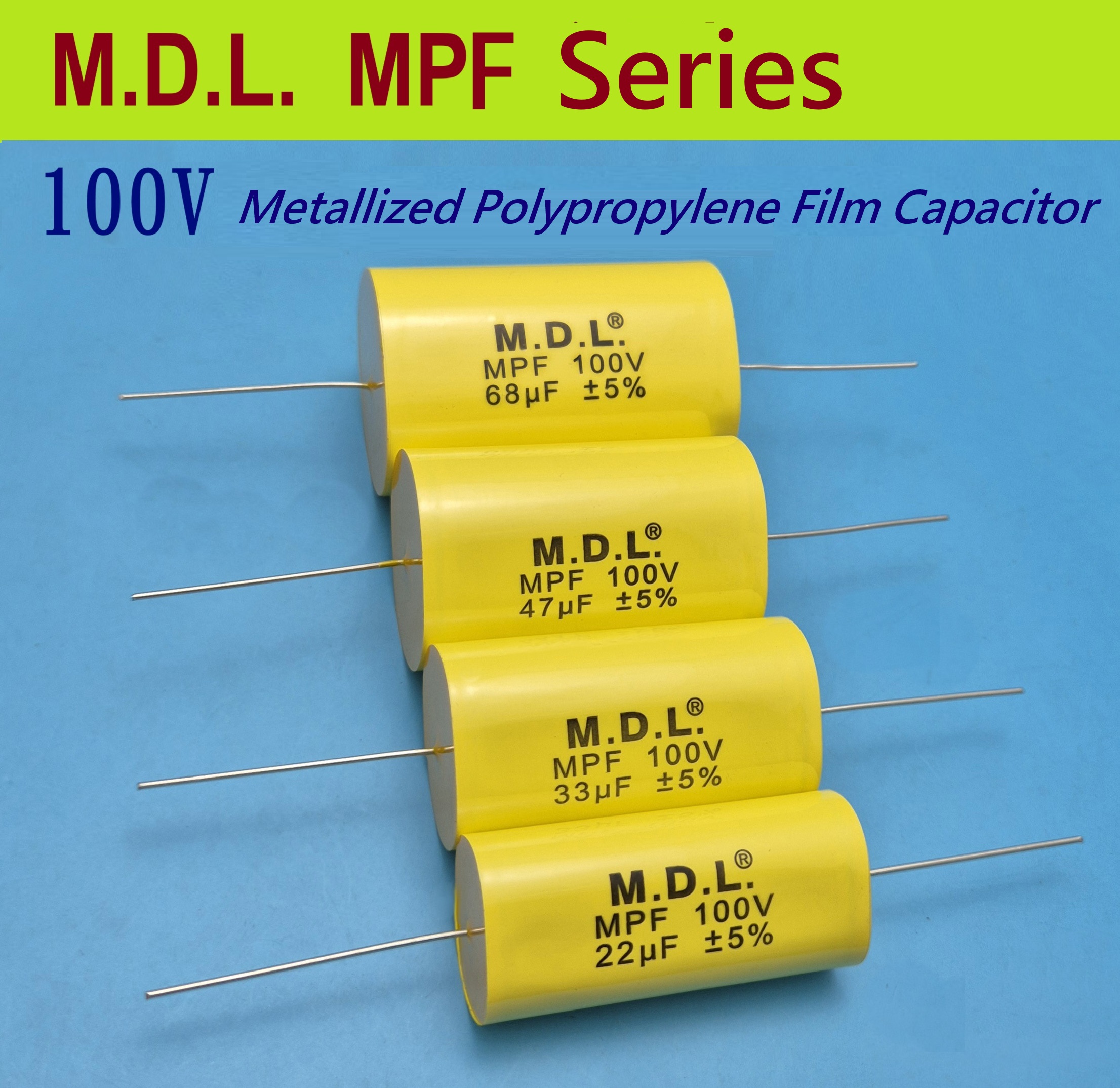

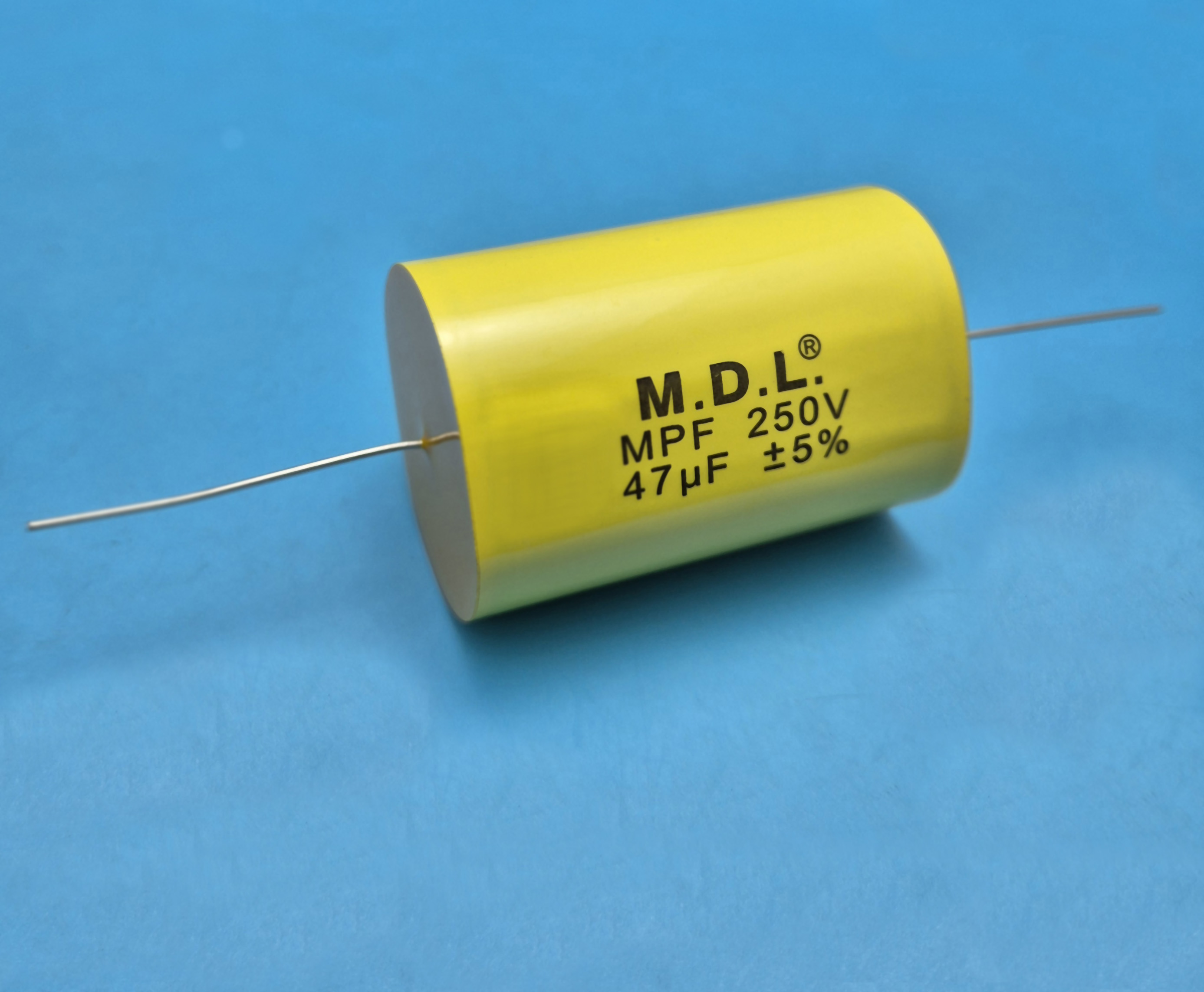

M.D.L. MPF Series Metallized Polypropylene Film Capacitors, Non-Inductive
The M.D.L. MPF Series uses exactly the same metallized polypropylene film, OFC copper leads and basic manufacturing process as the MPT Series.

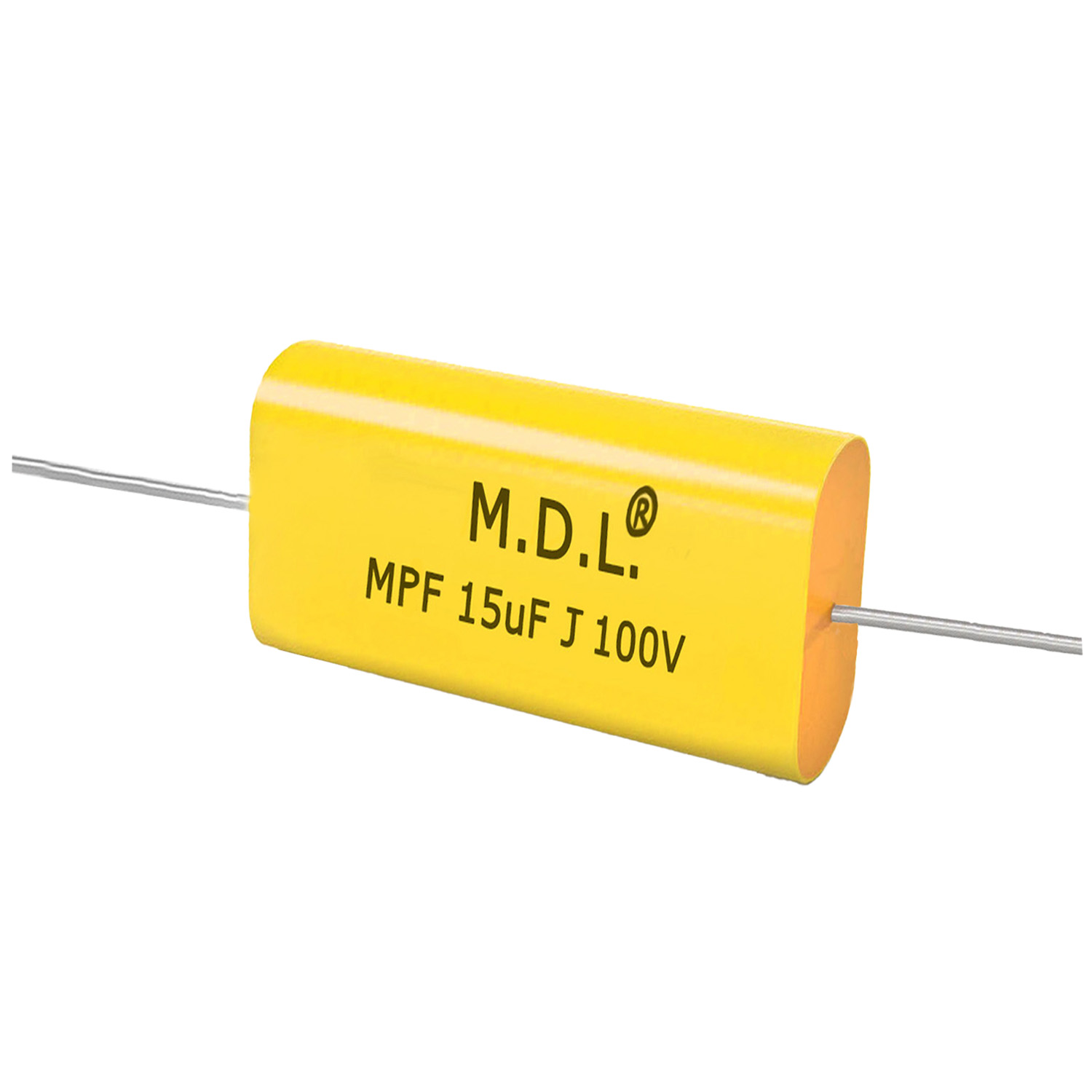

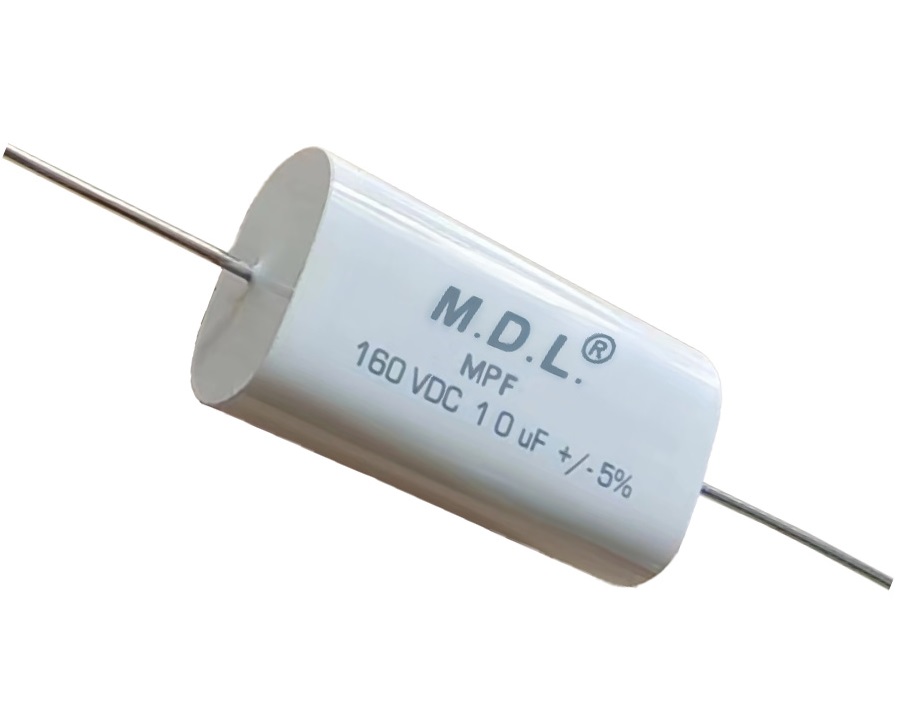

After winding, the capacitor is flattened to form an axial flat oval profile. Its lower body height provides greater installation flexibility, making it suitable for loudspeaker crossover networks, car audio systems, audio filtering circuits and electronic equipment with limited installation space.
【Special Note】: We use OFC oxygen-free copper leads. Low-end MPF capacitors on the market typically use aluminum or iron leads. All M.D.L. capacitors sold by our company use OFC oxygen-free copper leads. You can distinguish genuine products from counterfeit ones by scratching off the plating on the leads or using a magnet.
- Product Overview
- Specifications
- Features
Product Overview
M.D.L. MPF Type Metallized polypropylene Capacitors
The MPF and MPT Series use the same materials, share the same basic electrical characteristics and belong to the same performance class. Their primary difference is the final body-forming process.
The MPT Series has an axial round tubular body. The MPF Series undergoes an additional flattening process after winding, forming a flat oval profile. This process reduces the gaps between the internal film layers and creates a more compact structure, while the basic electrical performance remains comparable to the MPT Series.
The MPF is therefore not positioned as a higher-grade or upgraded version of the MPT. Customers can select between the two series according to available board space, installation height, body shape and wiring requirements.
The MPF Series features a non-inductive winding construction that helps minimize parasitic inductance. Its metallized polypropylene film provides low loss, stable capacitance, good frequency characteristics and dependable insulation performance for crossover, filtering, coupling and general signal-processing circuits.
Key specifications:
- Construction: Axial lead, flat oval body
- Working voltage: 100VDC to 630VDC
- Dissipation factor: D.F. below 0.075% at 1kHz
- Lead material: OFC copper
- Winding: Non-inductive
- Mounting: Horizontal axial mounting
Typical applications include:
- Two-way, three-way and multi-way loudspeaker crossover networks
- Crossover boards with limited installation height
- Automotive coaxial speakers and car audio systems
- Home audio and home theater systems
- General professional audio equipment
- Power amplifiers and audio filtering circuits
- High-frequency and general signal-processing circuits
- Communication, industrial control and general electronic equipment

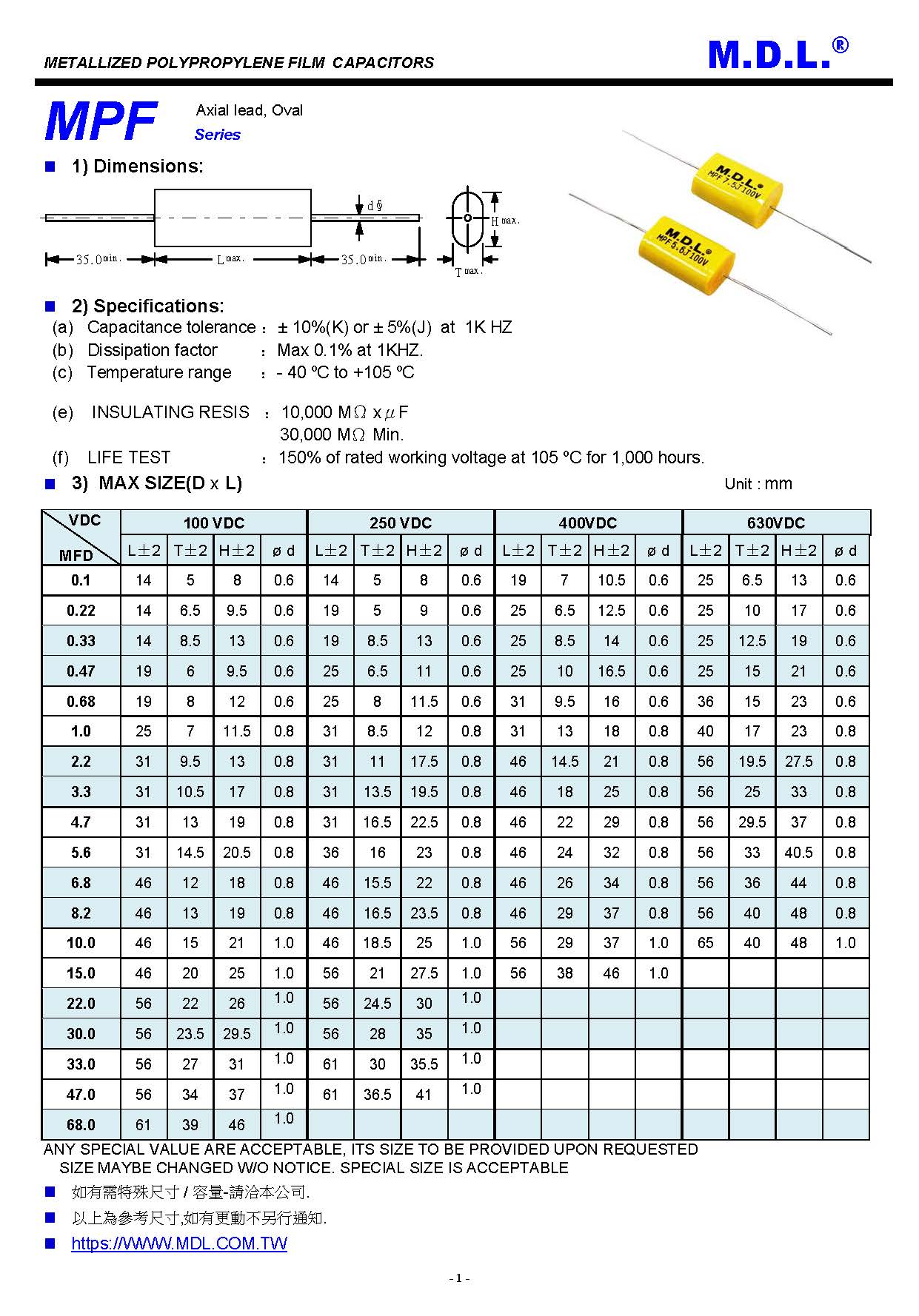

Specifications
Features
- Same Materials as the MPT Series
Uses the same metallized polypropylene film, OFC copper leads and basic manufacturing process. - Same Basic Performance Class
The primary difference between the MPF and MPT Series is the body shape, not the material or product grade. - Flattened Body-Forming Process
An additional flattening process forms the wound capacitor into a flat oval profile. - Reduced Installation Height
Suitable for products with limited board space or lower body-height requirements. - More Compact Internal Structure
Flattening reduces the gaps between film layers, while basic electrical characteristics remain comparable to the MPT Series. - Non-Inductive Winding Construction
Helps minimize parasitic inductance and provides stable signal transmission and filtering. - Low Dissipation Loss
Dissipation factor of less than 0.075% at 1kHz. - OFC Copper Leads
Provide good electrical conductivity and dependable end connections. - Stable Capacitance and Insulation Performance
Suitable for audio crossover, filtering, coupling and general signal-processing circuits. - 100VDC to 630VDC Working Voltage
Multiple voltage ratings support flexible engineering selection. - Balanced Performance and Cost
Suitable for volume-production products requiring dependable quality, flexible installation and practical cost. - OEM, ODM and Customization
Special capacitance, voltage, tolerance, dimensions, lead lengths, colors, markings and packaging are available upon request. - Available Under M.D.L. or Customer Brands
Suitable for audio manufacturers, equipment factories, component brands and electronic-component distributors.
