M.D.L. MEF Series Metallized Polyester Film Capacitors, Non-Inductive
The M.D.L. MEF Series uses the same metallized polyester film, OFC copper leads and basic manufacturing process as the MET Series.

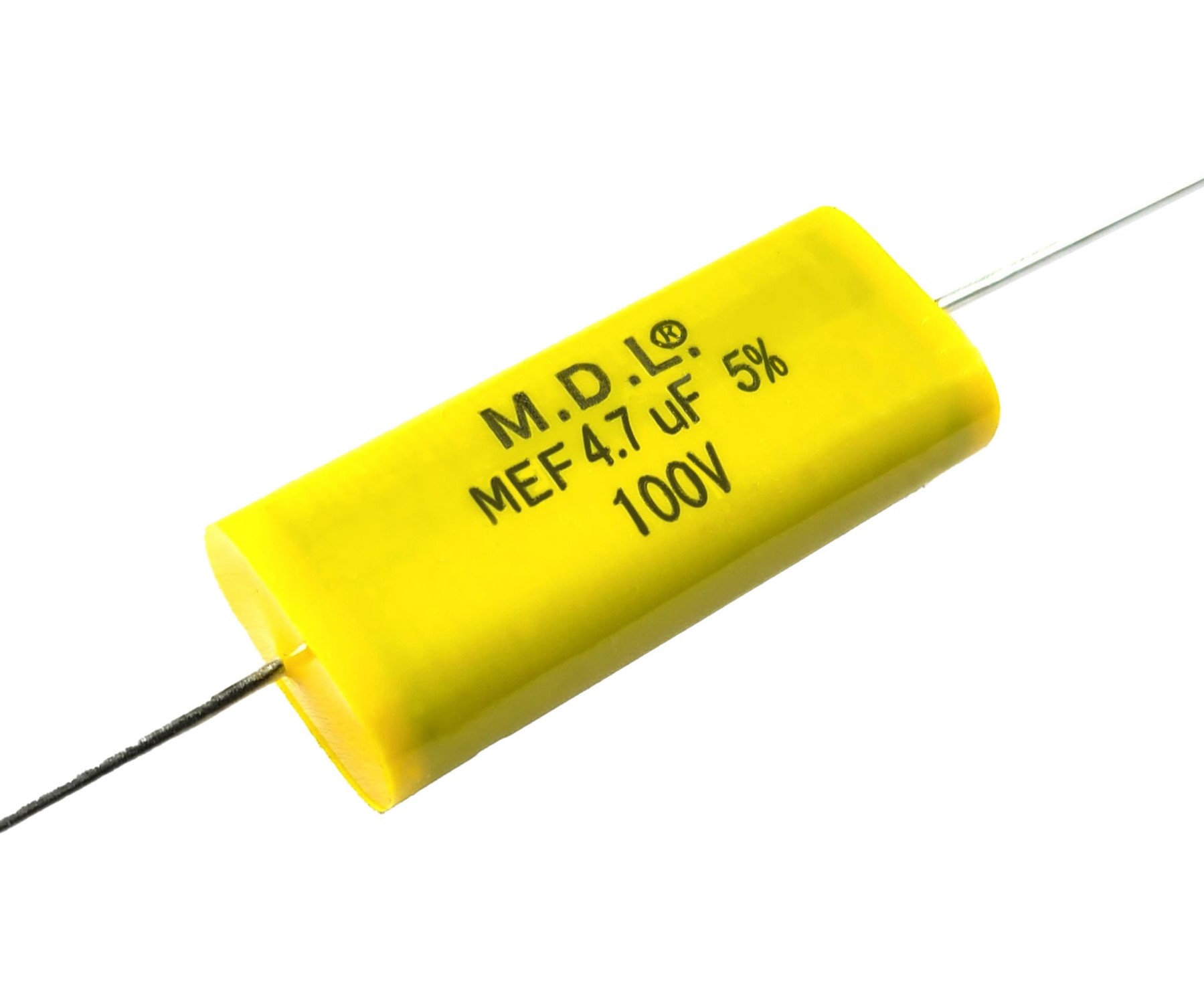

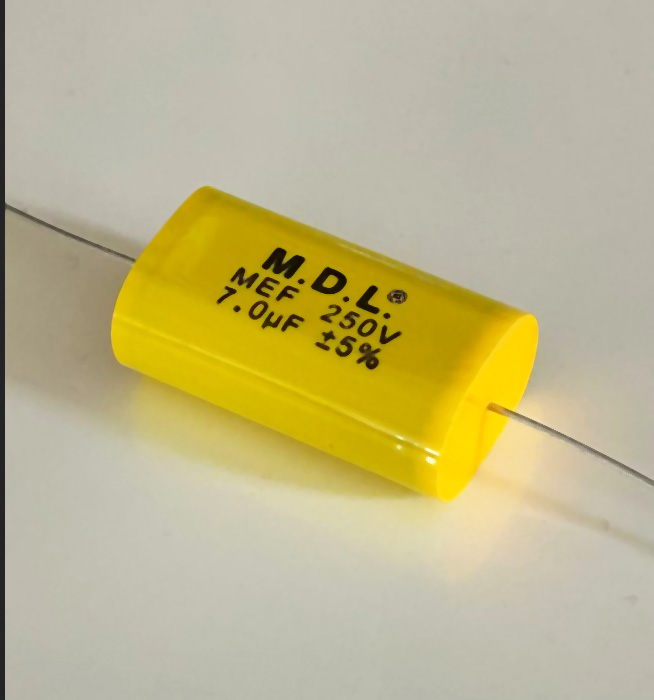

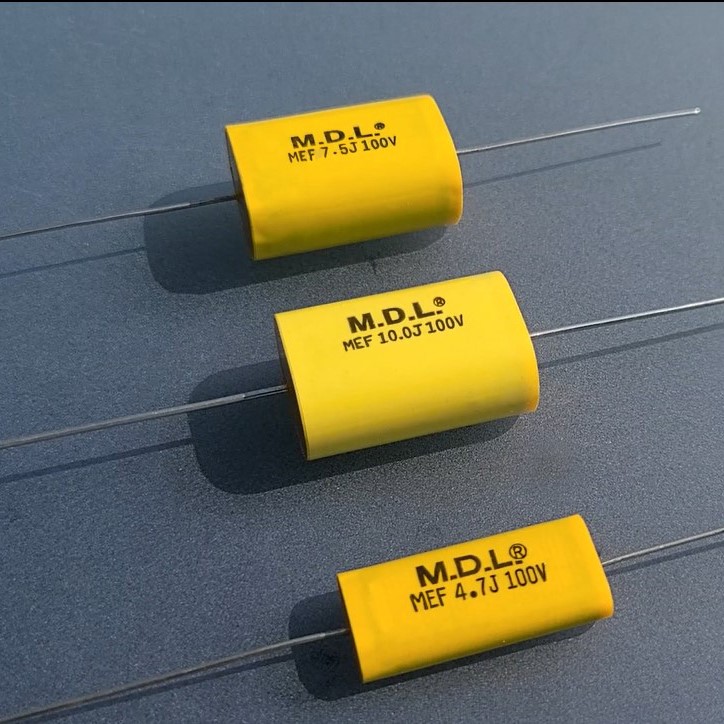

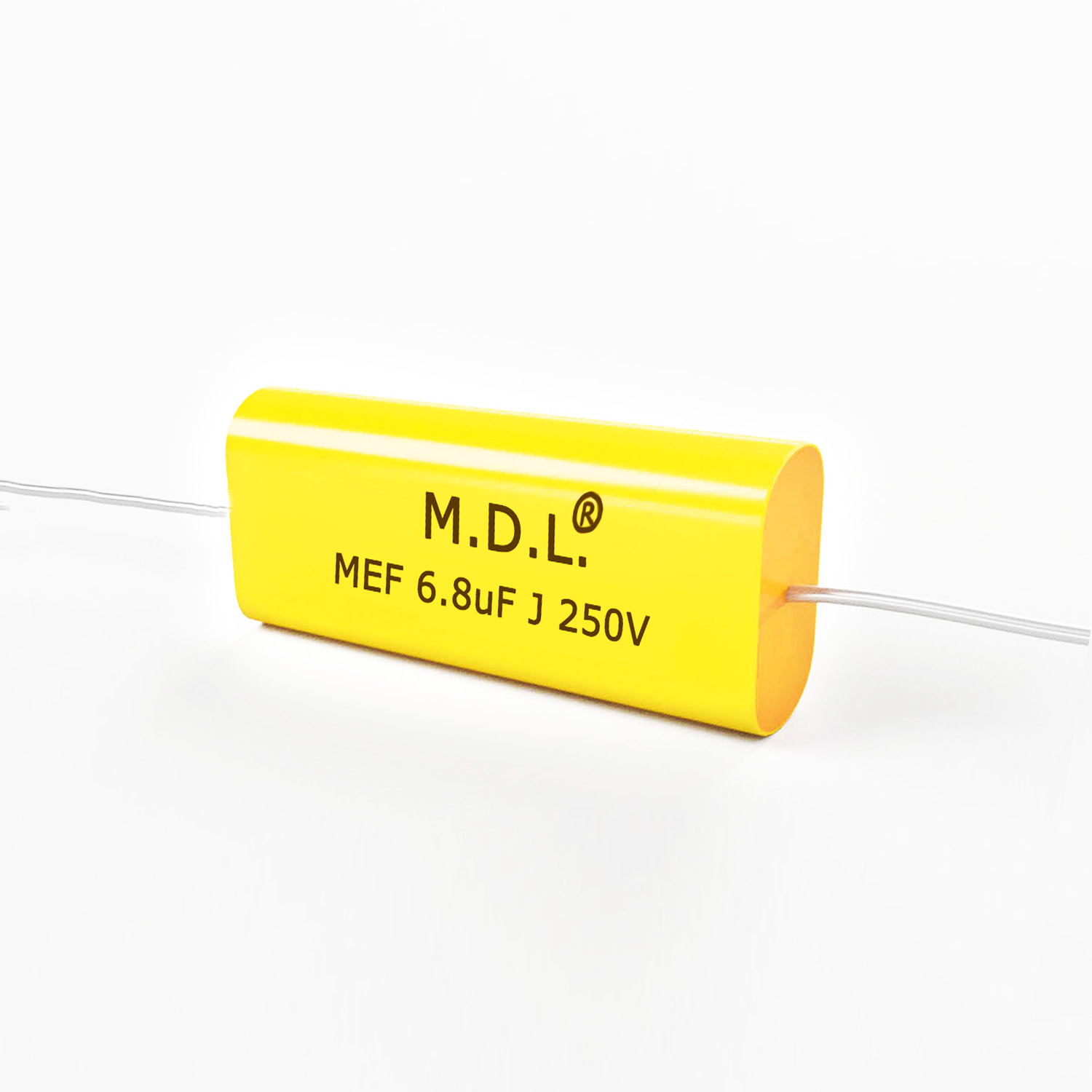

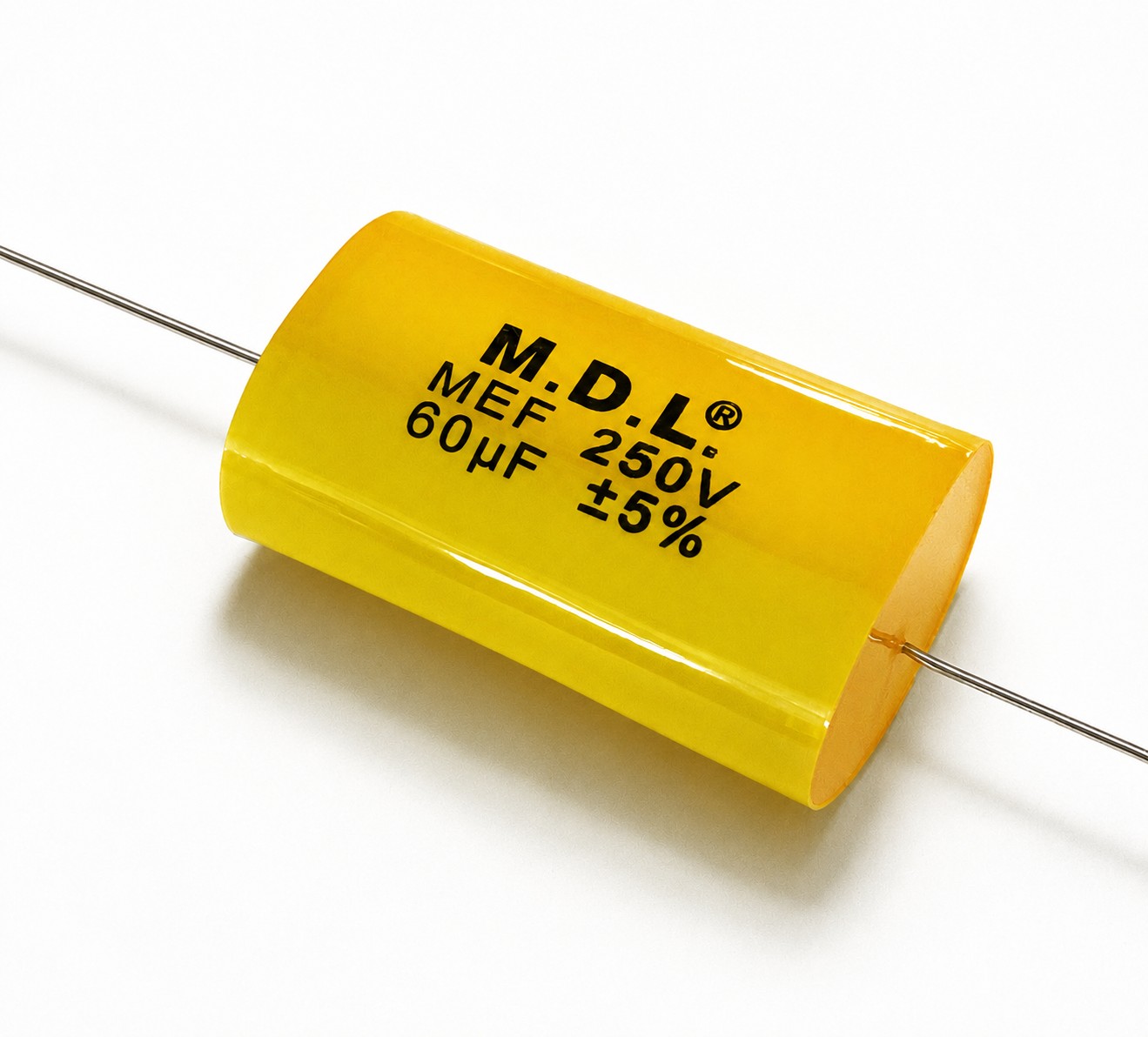

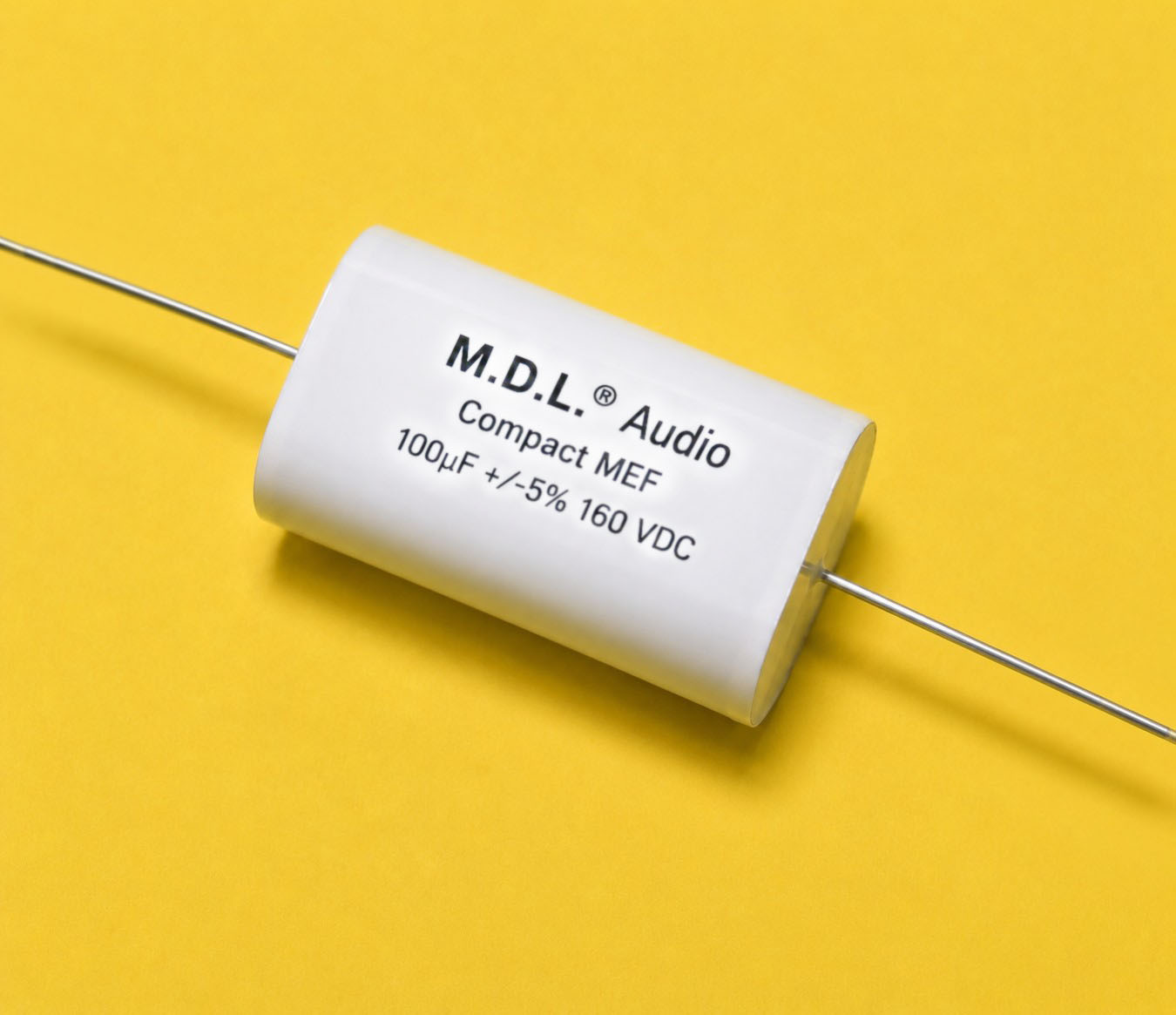

After winding, the capacitor is flattened to form an axial flat oval profile. Its lower body height provides greater installation flexibility for audio crossover networks and electronic equipment with limited space.
【Special Note】: We use OFC oxygen-free copper leads. Low-end MEF capacitors on the market typically use aluminum or iron leads. All M.D.L. capacitors sold by our company use OFC oxygen-free copper leads. You can distinguish genuine products from counterfeit ones by scratching off the plating on the leads or using a magnet.
- Product Overview
- Specifications
- Features
Product Overview
M.D.L. MEF Series Metallized Polyester Film Capacitors
-
The MEF and MET Series share the same materials, winding construction and fundamental electrical characteristics. Their main difference is the final body shape: the MET maintains a round tubular profile, while the MEF is flattened after winding to create a flat oval body.
The flattening process reduces body height and provides a different use of installation space. The MEF is not positioned as a higher-grade or upgraded version of the MET. Customers can select the appropriate series according to crossover-board space, body-height restrictions and wiring layout.
Leads extend from opposite ends of the MEF body, making it particularly suitable for loudspeaker crossovers, car audio and horizontally mounted audio circuits.
Key specifications:
- Construction: Axial lead, flat oval body
- Working voltage: 100VDC to 250VDC
- Operating temperature: −40°C to +105°C
- Lead material: OFC copper
- Winding: Non-inductive
Typical applications include:
Loudspeaker crossovers with limited installation height Automotive coaxial speakers and car audio Home audio and home theater systems Speaker systems and general professional audio equipment Power amplifiers and audio filtering Communication, instruments and general electronics

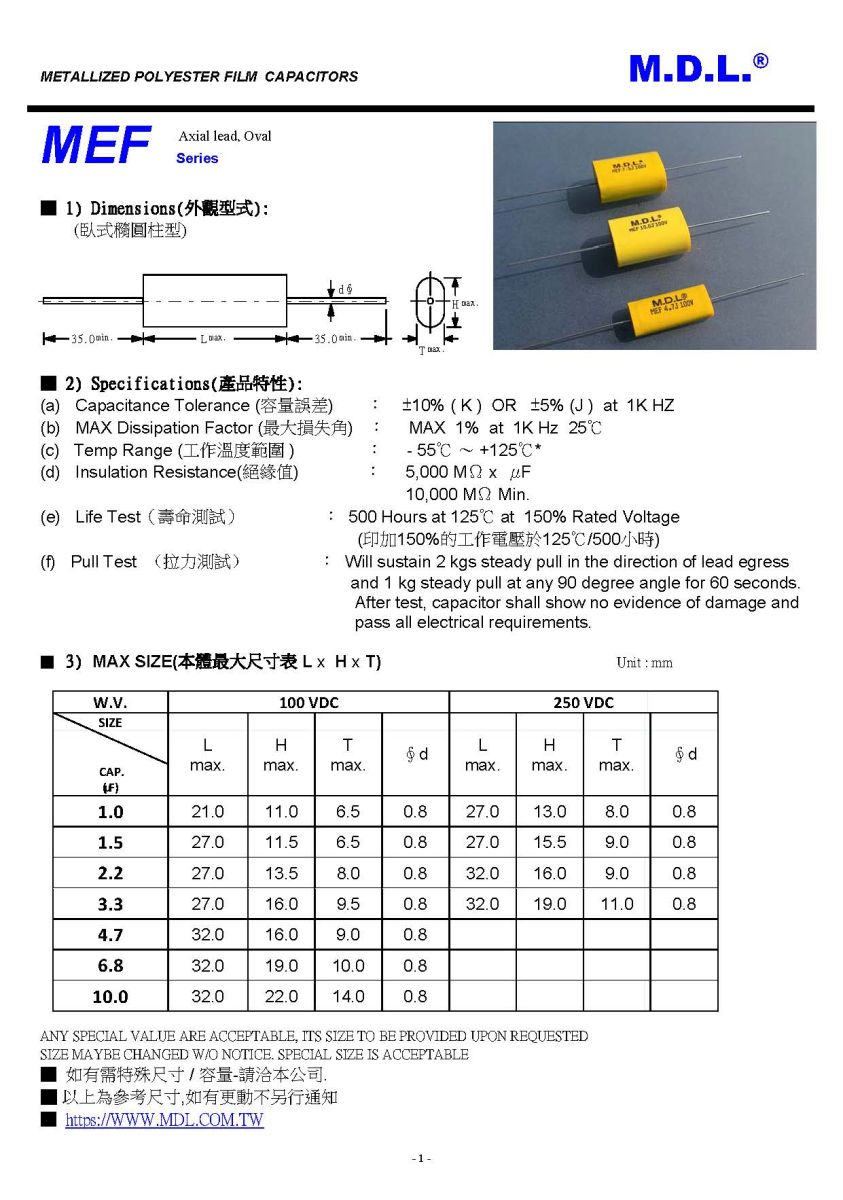

Specifications
Features
- Same materials and basic electrical design as the MET Series
- Non-inductive winding construction
- Flattened after winding
- Axial flat oval body
- Reduced installation height
- Low loss and good frequency characteristics
- Stable capacitance and insulation performance
- OFC copper leads
- 100VDC to 250VDC working voltage
- −40°C to +105°C operating temperature
- Multiple capacitance, tolerance and dimension options
- Custom body shape, leads, colors, markings and packaging
- Available under M.D.L., OEM or ODM production
