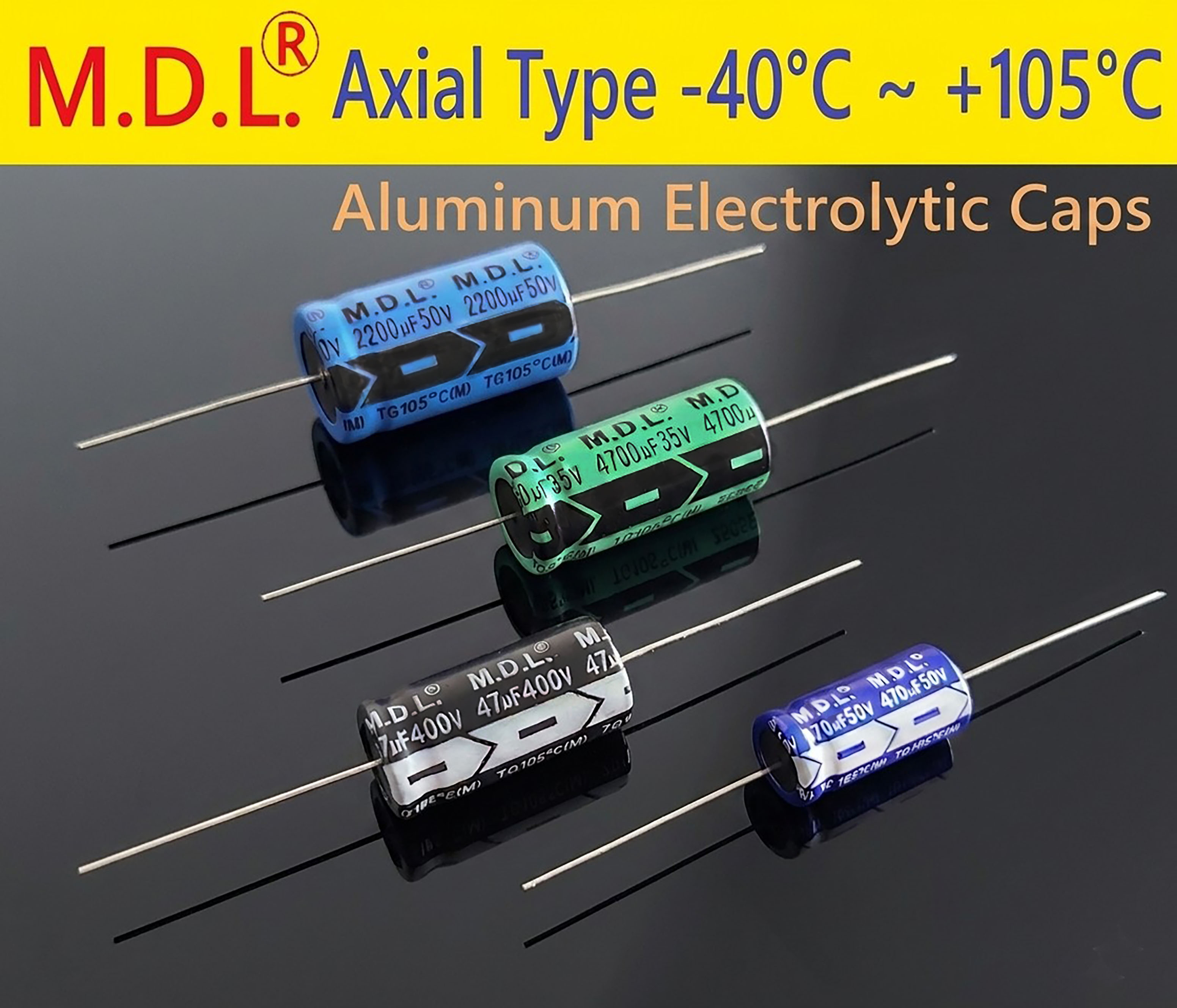

TG Series Axial Type Aluminum Electrolytic Capacitors -40°C ~ +105°C

The M.D.L.® TG Series is a range of polarized axial aluminum electrolytic capacitors designed for high-temperature and high-reliability applications.

High-temperature aluminum foil, electrolyte and sealing materials support stable operation across a temperature range of −40°C to +105°C. With rated voltages from 6.3VDC to 500VDC, the series is suitable for power supplies, audio equipment, industrial controls, communication equipment and electronic products requiring greater thermal endurance.

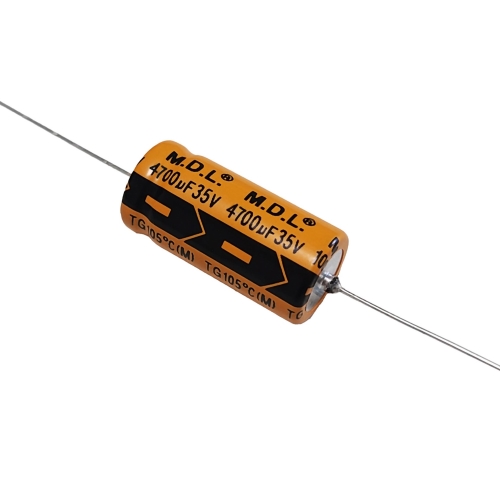

TG Series: 105°C Axial Type

W.V. : 6.3V ~ 500V

Product Overview
Specifications
Features

Product Overview

The TG Series is developed for equipment with higher internal temperatures, limited cooling space or extended operating periods.

Compared with the 85°C series, the TG Series uses different grades of aluminum foil, a high-temperature electrolyte formulation and related materials. Although these materials increase the manufacturing cost, they provide greater thermal margin and help reduce the effect of heat on capacitance, dissipation, leakage current and service life.

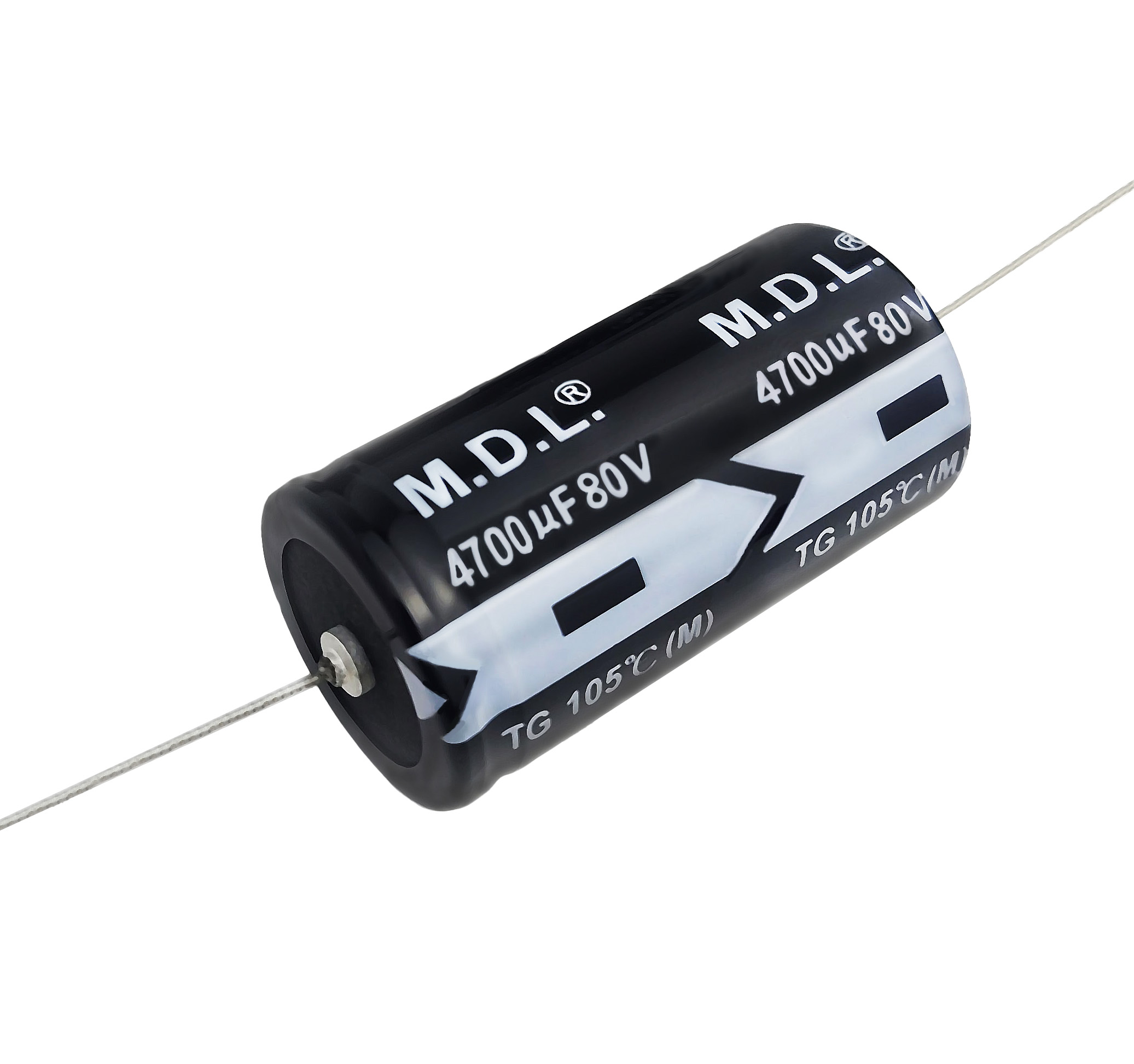

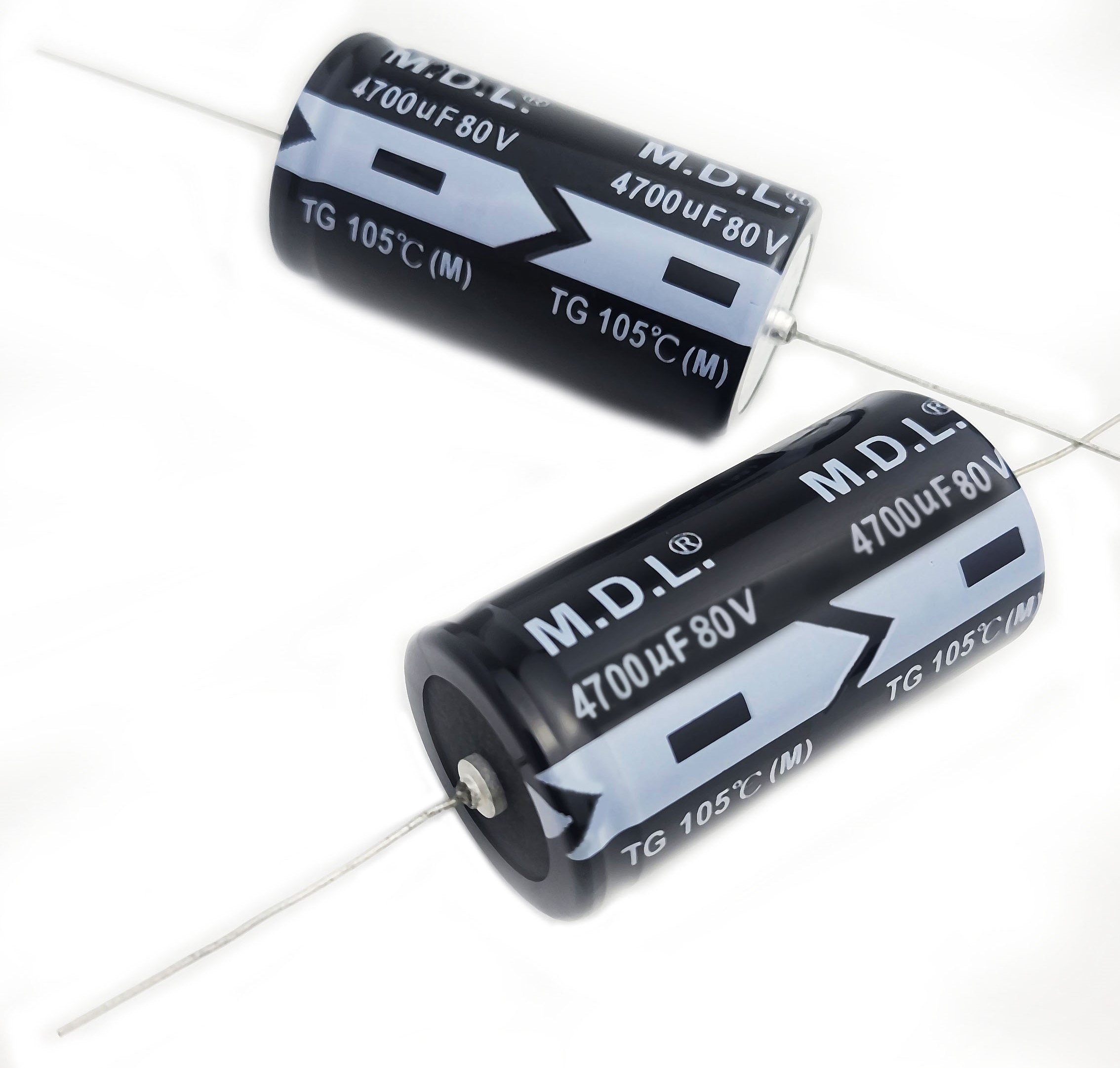

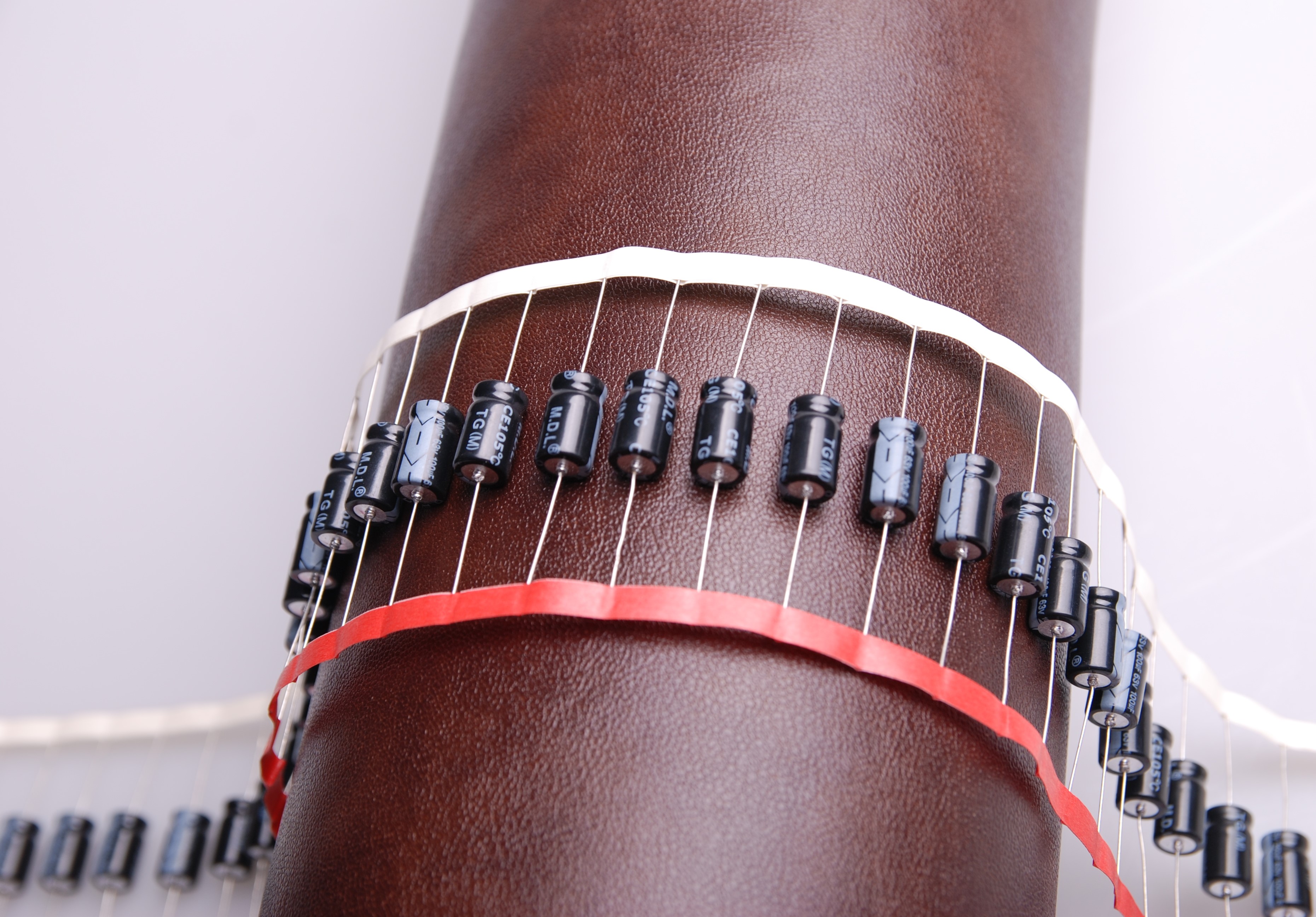

Positive and negative leads extend from opposite ends of the capacitor body. This axial construction is suitable for horizontal circuit layouts, point-to-point wiring and replacement of existing axial capacitors. A broad selection of capacitance, voltage and case-size combinations supports flexible component selection.

Typical applications include:

Switching and linear power supplies
Smoothing, filtering and energy-storage circuits
Power amplifiers and audio equipment
Industrial control and automation systems
Communication and signal-processing equipment
Instruments and test equipment
Electronic products with higher internal temperatures or limited cooling
Maintenance and replacement of axial capacitors

Specifications

M.D.L. TG Series Axial Type Aluminum Electrolytic Capacitors -40°C ~ +105°C

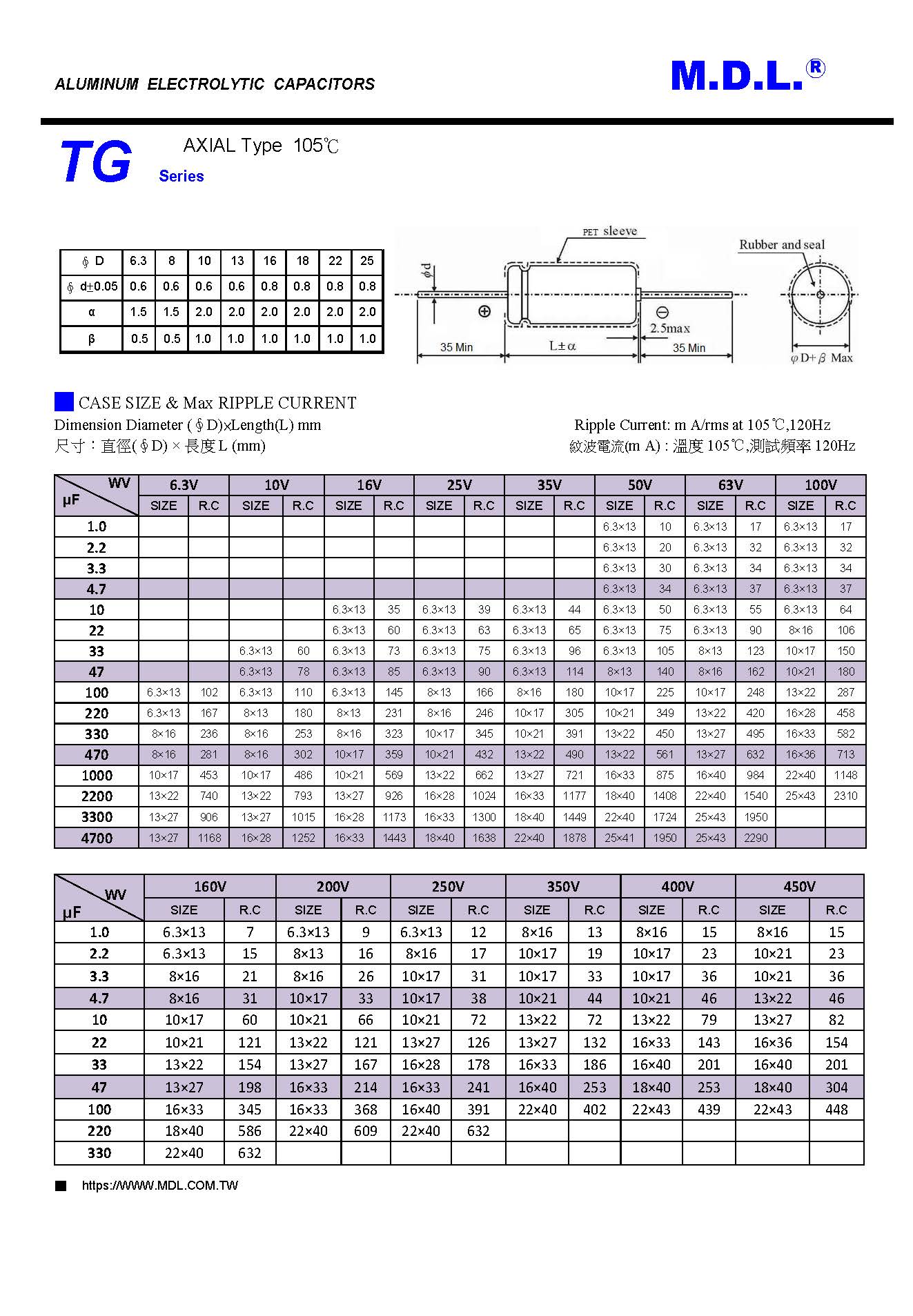

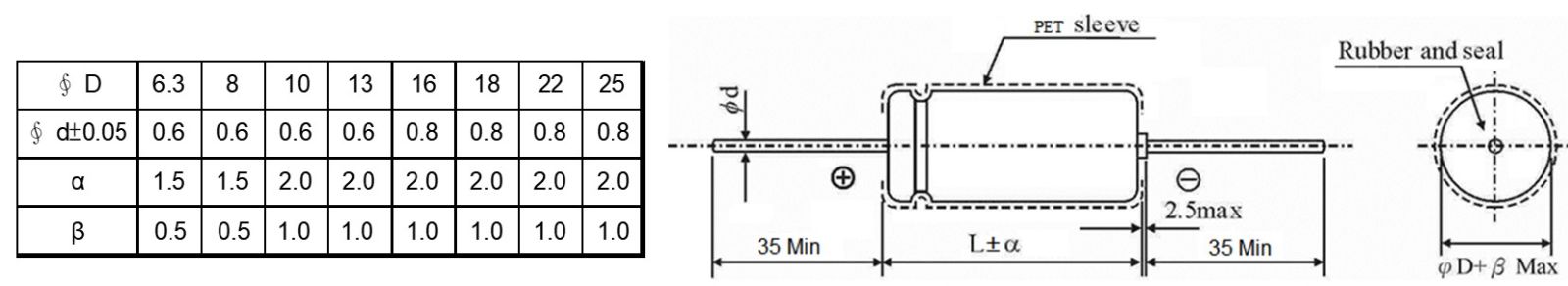

♦1) Dimensions :

█ CASE SIZE & Max RIPPLE CURRENT

Dimension Diameter (∮D)×Length(L) mm Ripple Current: m A/rms at 105℃,120Hz

WV	6.3V		10V		16V		25V		35V		50V
μF	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C
1											6.3×13	10
2.2											6.3×13	20
3.3											6.3×13	30
4.7											6.3×13	34
10					6.3×13	35	6.3×13	39	6.3×13	44	6.3×13	50
22					6.3×13	60	6.3×13	63	6.3×13	65	6.3×13	75
33			6.3×13	60	6.3×13	73	6.3×13	75	6.3×13	96	6.3×13	105
47			6.3×13	78	6.3×13	85	6.3×13	90	6.3×13	114	8×13	140
100	6.3×13	102	6.3×13	110	6.3×13	145	8×13	166	8×16	180	10×17	225
220	6.3×13	167	8×13	180	8×13	231	8×16	246	10×17	305	10×21	349
330	8×16	236	8×16	253	8×16	323	10×17	345	10×21	391	13×22	450
470	8×16	281	8×16	302	10×17	359	10×21	432	13×22	490	13×22	561
1000	10×17	453	10×17	486	10×21	569	13×22	662	13×27	721	16×33	875
2200	13×22	740	13×22	793	13×27	926	16×28	1024	16×33	1177	18×40	1408
3300	13×27	906	13×27	1015	16×28	1173	16×33	1300	18×40	1449	22×40	1724
4700	13×27	1168	16×28	1252	16×33	1443	18×40	1638	22×40	1878	25×41	1950


WV	160V		200V		250V		350V		400V		450V
μF	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C
1	6.3×13	7	6.3×13	9	6.3×13	12	8×16	13	8×16	15	8×16	15
2.2	6.3×13	15	8×13	16	8×16	17	10×17	19	10×17	23	10×21	23
3.3	8×16	21	8×16	26	10×17	31	10×17	33	10×17	36	10×21	36
4.7	8×16	31	10×17	33	10×17	38	10×21	44	10×21	46	13×22	46
10	10×17	60	10×21	66	10×21	72	13×22	72	13×22	79	13×27	82
22	10×21	121	13×22	121	13×27	126	13×27	132	16×33	143	16×36	154
33	13×22	154	13×27	167	16×28	178	16×33	186	16×40	201	16×40	201
47	13×27	198	16×33	214	16×33	241	16×40	253	18×40	253	18×40	304
100	16×33	345	16×33	368	16×40	391	22×40	402	22×43	439	22×43	448
220	18×40	586	22×40	609	22×40	632
330	22×40	632

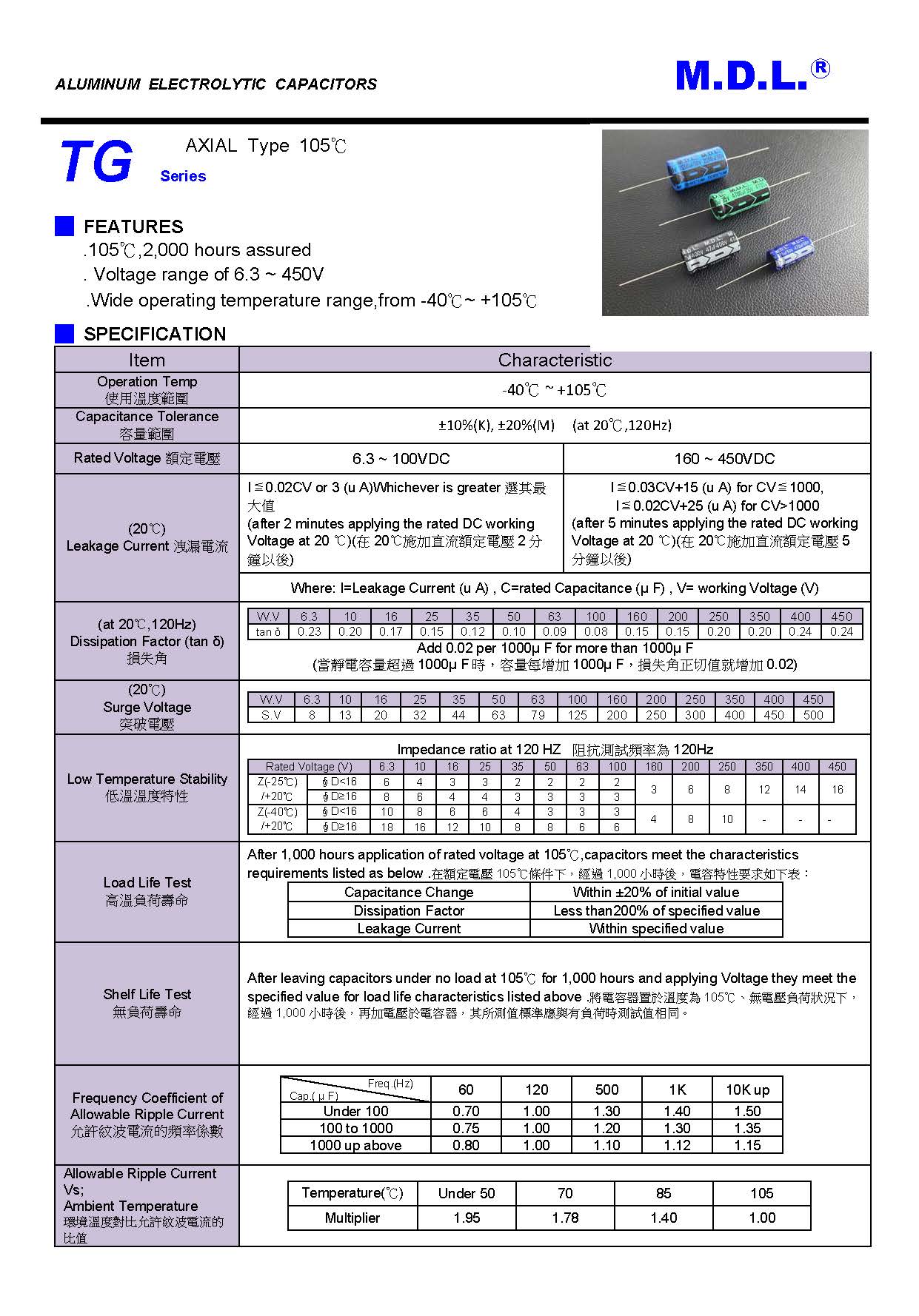

Specifications : Horizontal (axial) 105°C

Operating Voltage : 6.3V~500V

Temperature Range : -40°C~+105°C

Capacitance Rang e: 0.47 to 10,000μF

Capacitance Tolerance : ±20% (M), (120Hz, 25°C)

Leakage Current (25°C) : I ≤ 0.03 CV + 3μA (after 5 minutes of application)

Load Life : 2000 hours at 105°C

Case Dimensions: Diameter greater than 6.3mm (with safety explosion-proof opening on rubber pad)

Features

105°C High-Temperature Design
Operating temperature range of −40°C to +105°C for demanding thermal environments.
High-Temperature Aluminum Foil and Electrolyte
Aluminum foil, electrolyte and sealing materials are selected for 105°C operation.
High-Temperature Load Endurance
Qualified through a 1,000-hour load-life test at 105°C under specified rated conditions.
6.3VDC to 500VDC Voltage Range
Supports low-voltage controls, high-voltage power supplies and general electronic circuits.
Stable Electrical Characteristics
Provides controlled capacitance, dissipation, leakage current and low-temperature impedance.
Surge-Voltage Capability
Designed to withstand short-duration voltage variations during power-up and circuit operation.
Axial Construction
Leads extend from opposite ends for convenient horizontal mounting and point-to-point wiring.
Multiple Capacitance and Case-Size Options
A broad selection of values, voltage ratings and dimensions supports engineering requirements.
OEM, ODM and Custom Options
Special capacitance, voltage, dimensions, lead lengths and finishing can be discussed upon request.
