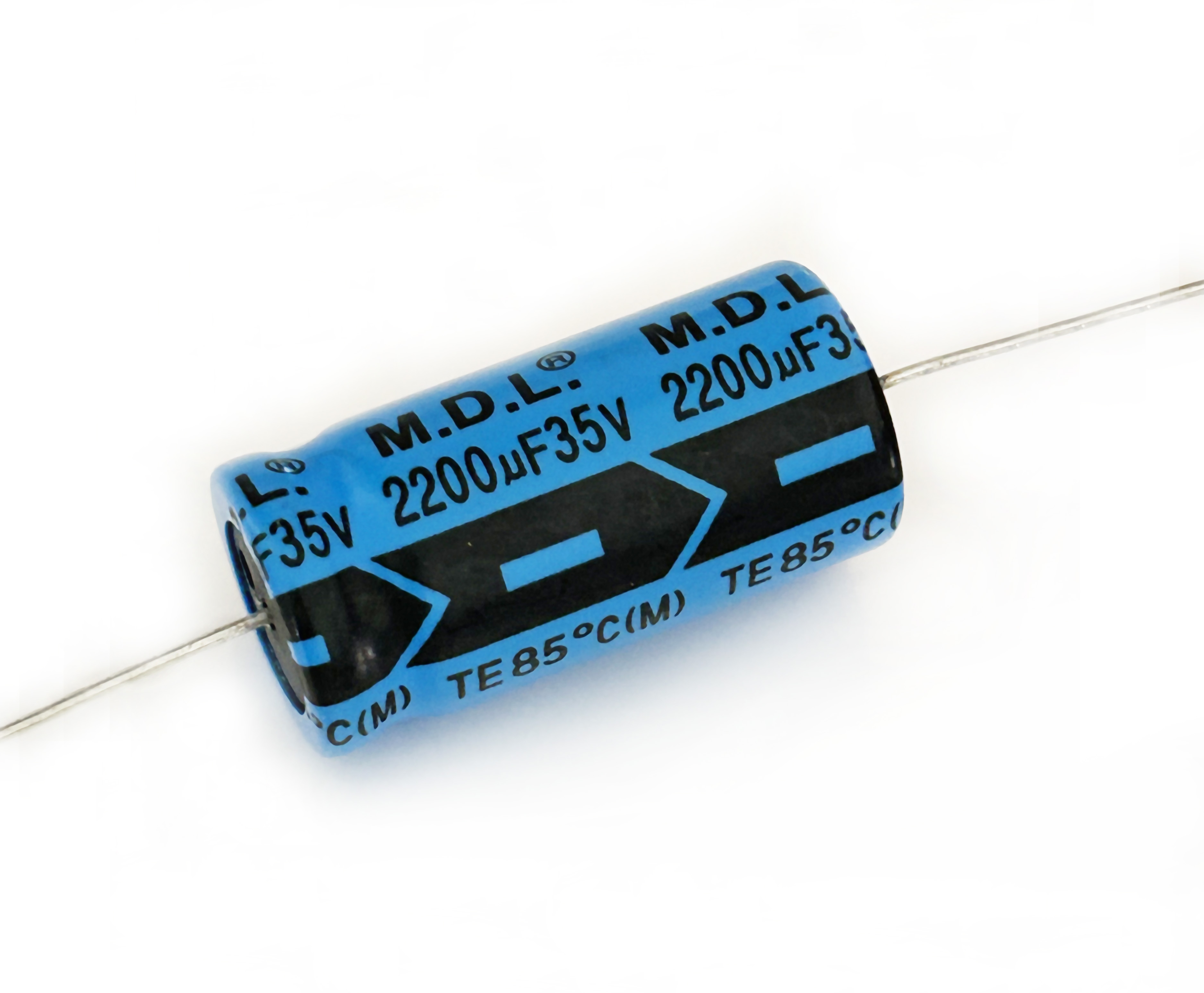

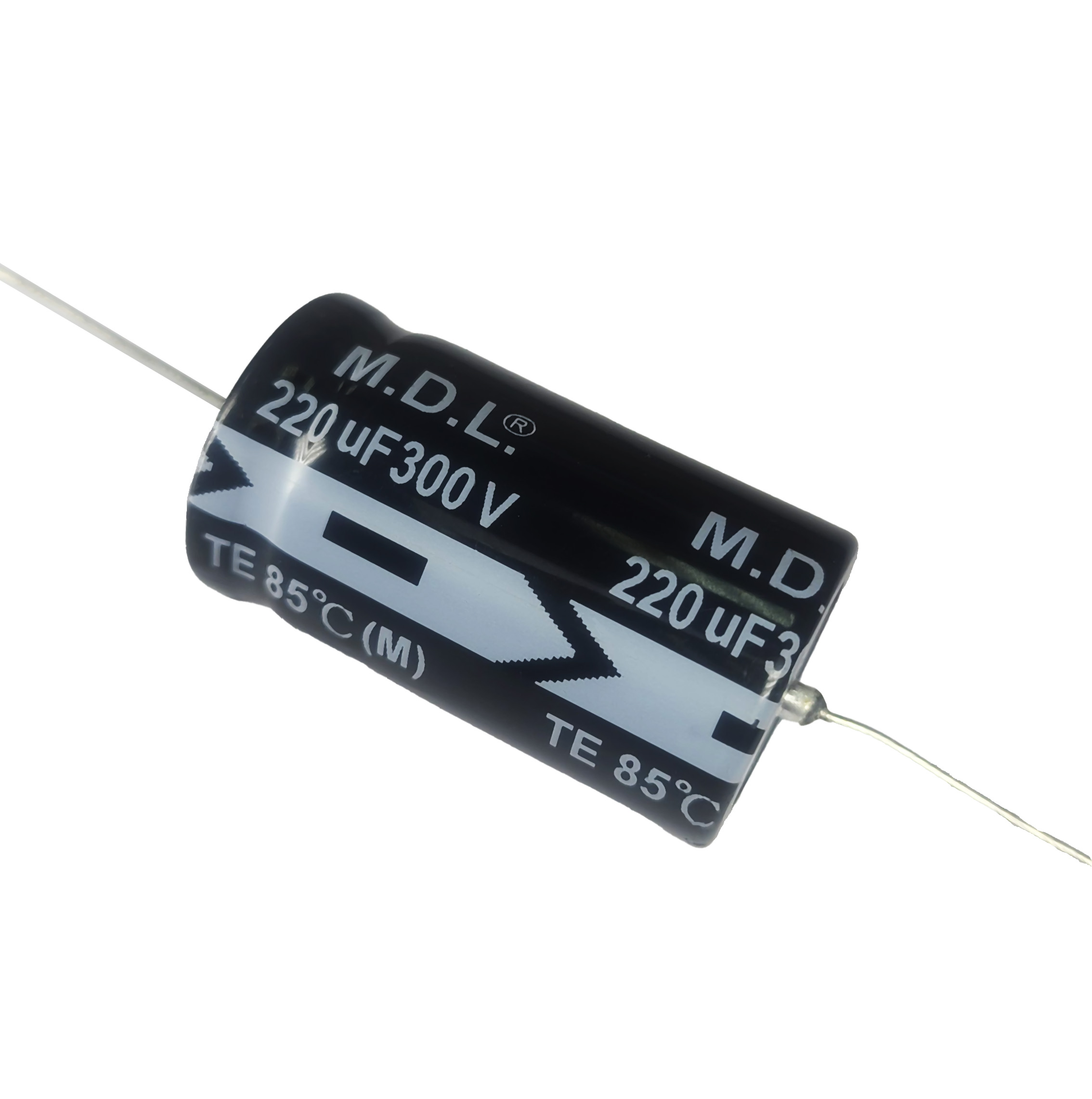

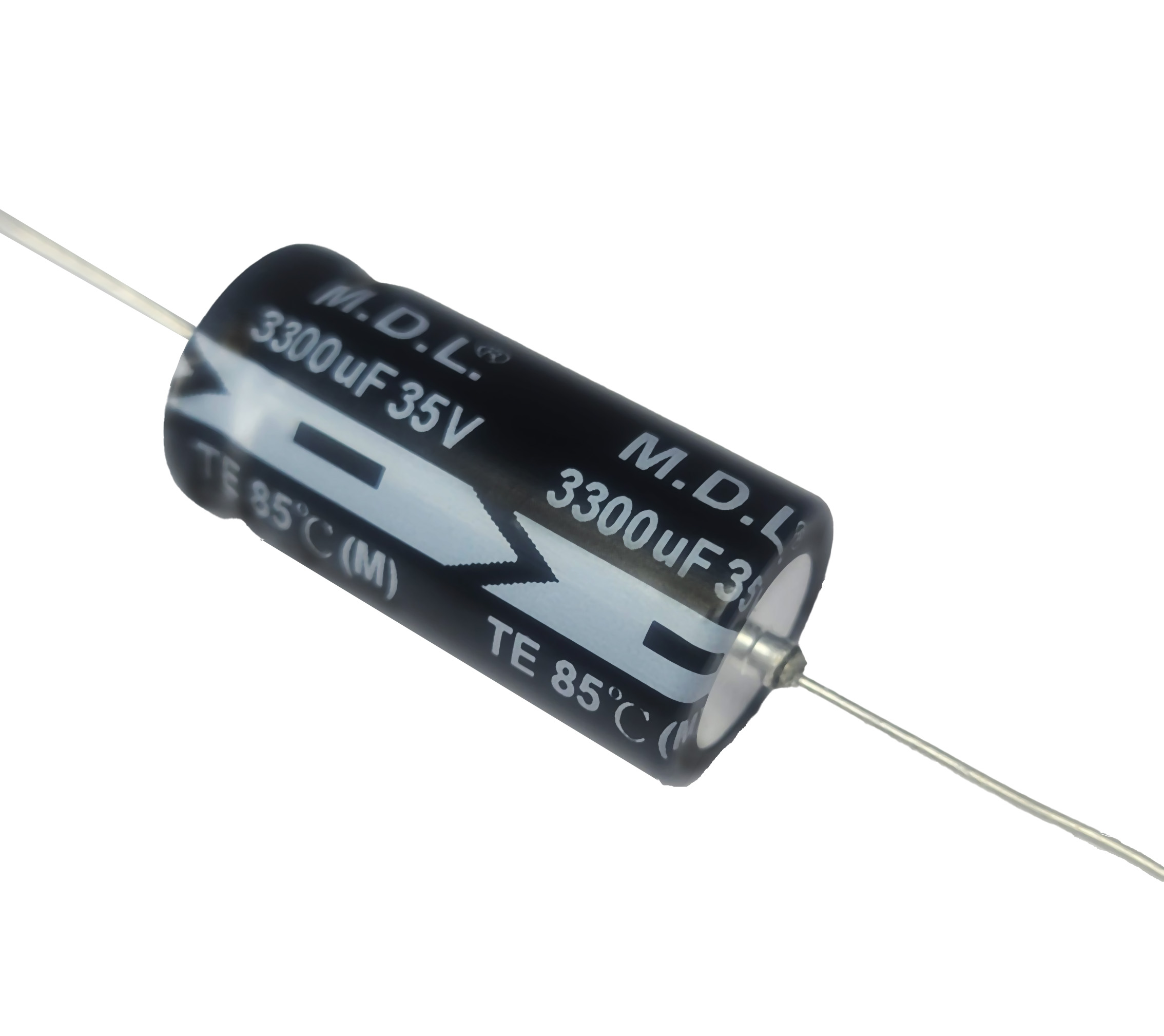

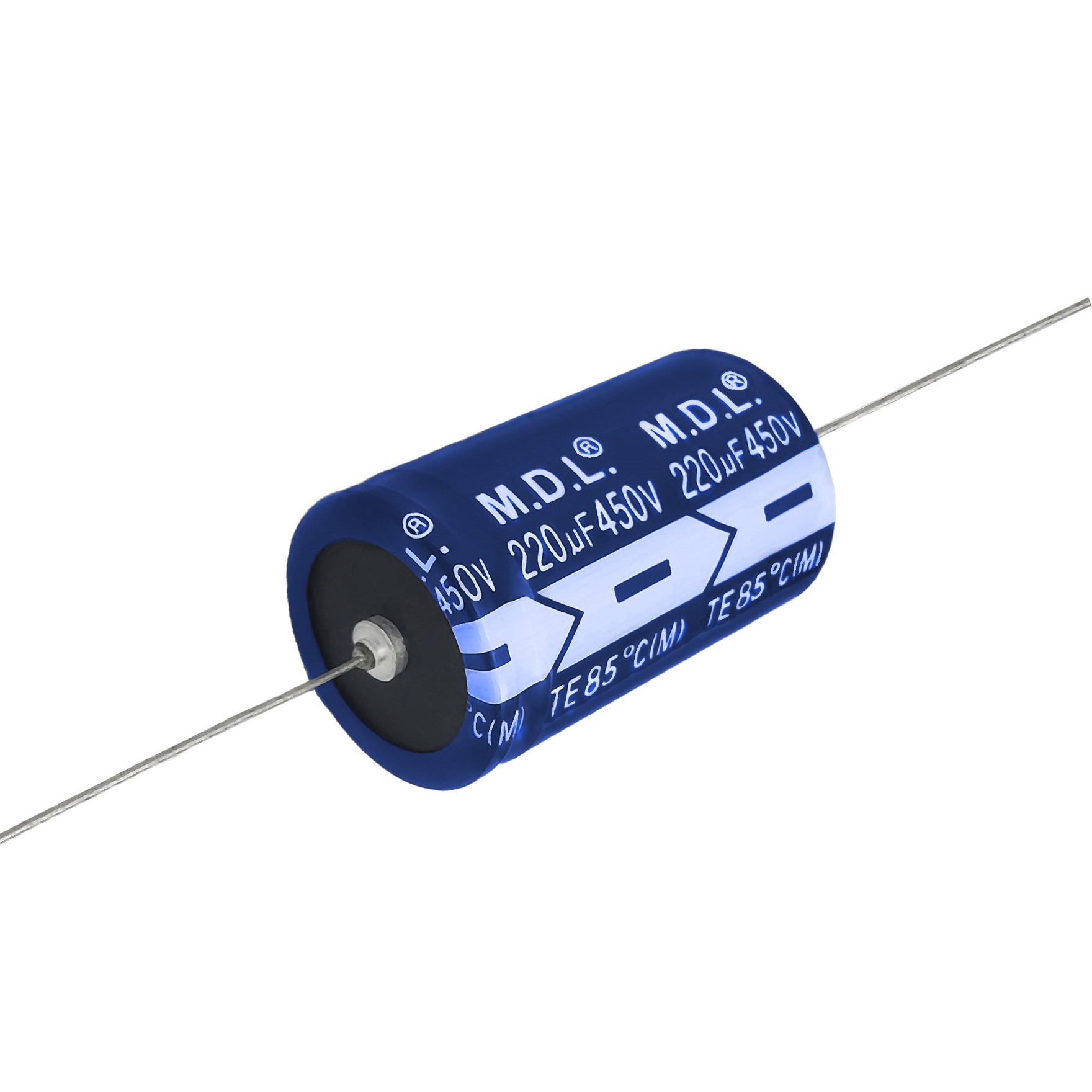

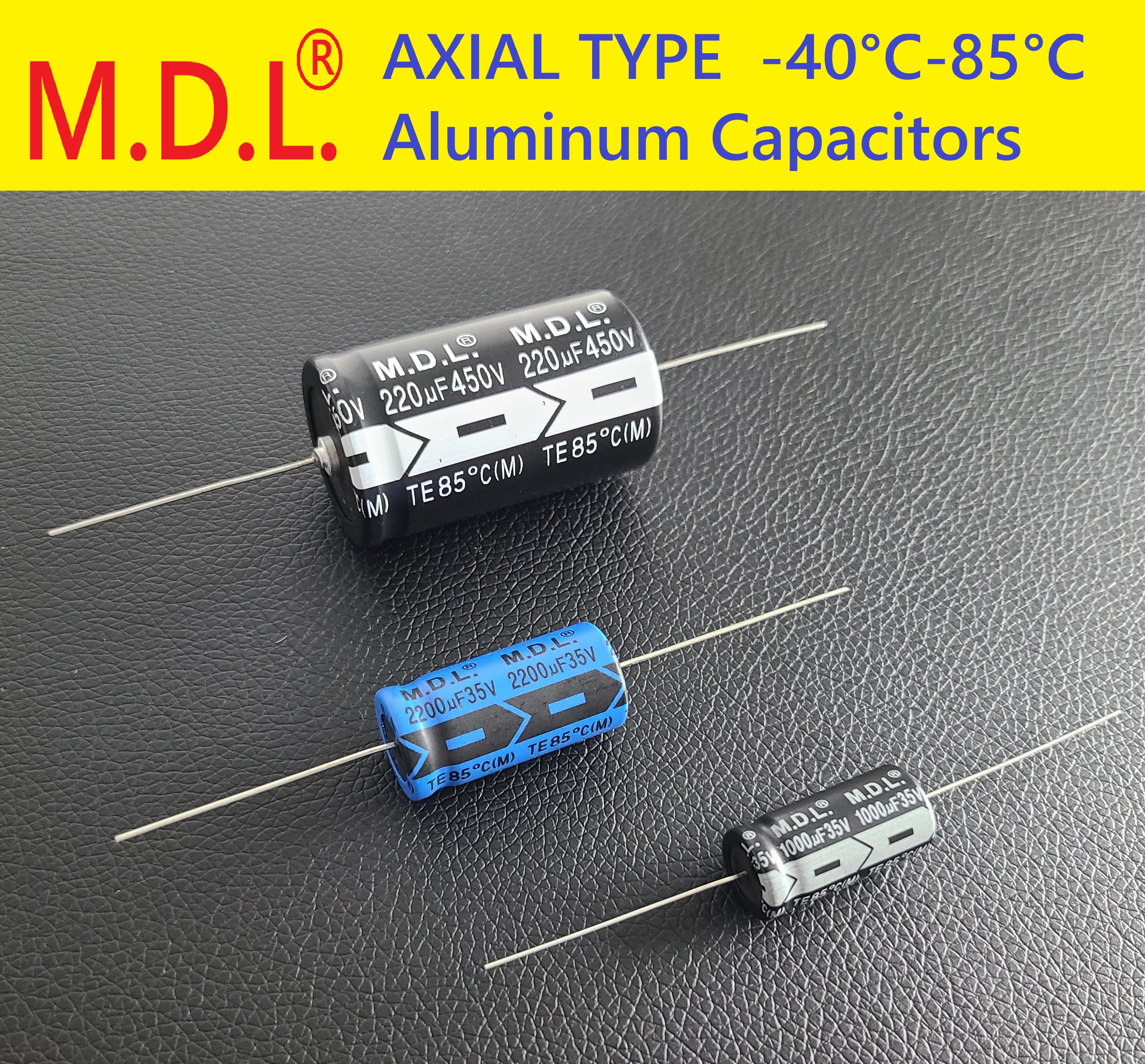

M.D.L. TE 系列 臥式軸向有極性鋁電解電容器 -40°C ~ +85°C

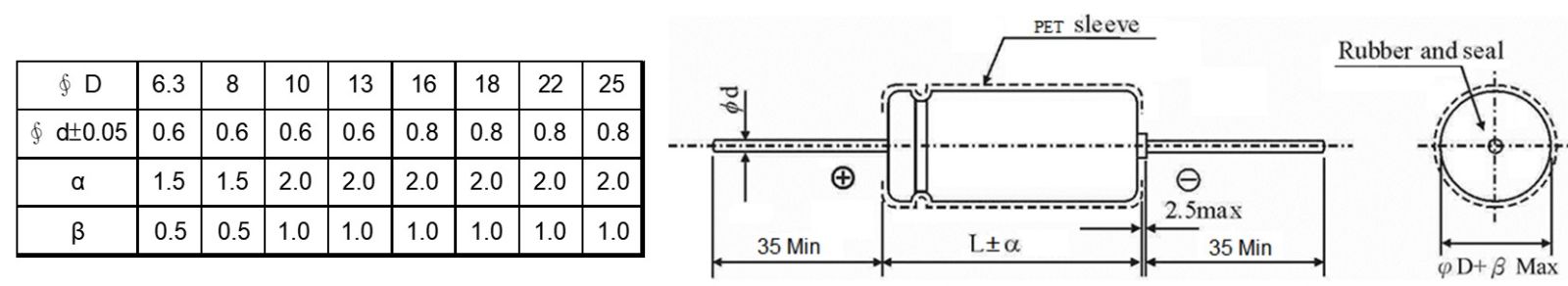

♦1) Dimensions(外觀型式):

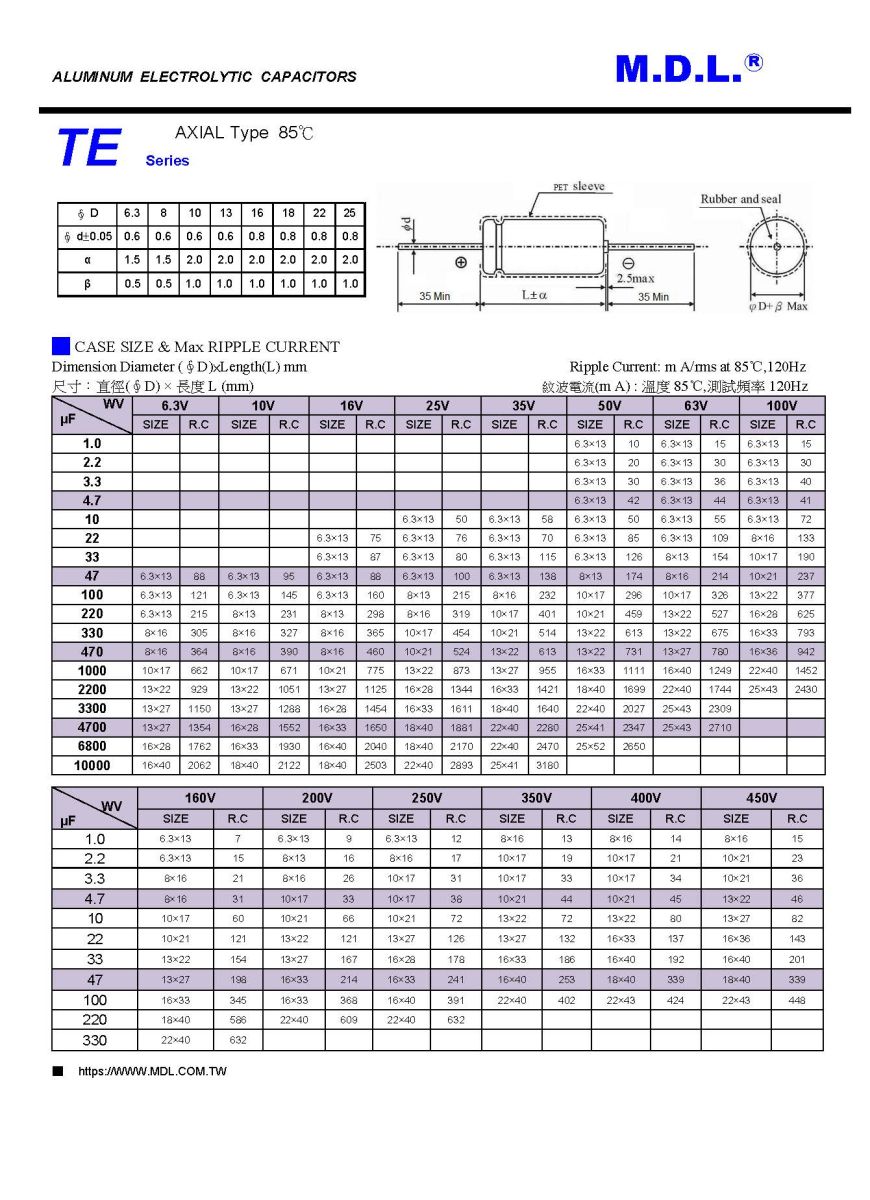

█ CASE SIZE & Max RIPPLE CURRENT

Dimension Diameter (∮D)×Length(L) mm                                Ripple Current: m A/rms at 85℃,120Hz

WV	6.3V		10V		16V		25V		35V		50V
μF	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C
1											6.3×13	10
2.2											6.3×13	20
3.3											6.3×13	30
4.7											6.3×13	42
10							6.3×13	50	6.3×13	58	6.3×13	50
22					6.3×13	75	6.3×13	76	6.3×13	70	6.3×13	85
33					6.3×13	87	6.3×13	80	6.3×13	115	6.3×13	126
47	6.3×13	88	6.3×13	95	6.3×13	88	6.3×13	100	6.3×13	138	8×13	174
100	6.3×13	121	6.3×13	145	6.3×13	160	8×13	215	8×16	232	10×17	296
220	6.3×13	215	8×13	231	8×13	298	8×16	319	10×17	401	10×21	459
330	8×16	305	8×16	327	8×16	365	10×17	454	10×21	514	13×22	613
470	8×16	364	8×16	390	8×16	460	10×21	524	13×22	613	13×22	731
1000	10×17	662	10×17	671	10×21	775	13×22	873	13×27	955	16×33	1111
2200	13×22	929	13×22	1051	13×27	1125	16×28	1344	16×33	1421	18×40	1699
3300	13×27	1150	13×27	1288	16×28	1454	16×33	1611	18×40	1640	22×40	2027
4700	13×27	1354	16×28	1552	16×33	1650	18×40	1881	22×40	2280	25×41	2347
6800	16×28	1762	16×33	1930	16×40	2040	18×40	2170	22×40	2470	25×52	2650
10000	16×40	2062	18×40	2122	18×40	2503	22×40	2893	25×41	3180
WV	160V		200V		250V		350V		400V		450V
μF	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C	SIZE	R.C
1	6.3×13	7	6.3×13	9	6.3×13	12	8×16	13	8×16	14	8×16	15
2.2	6.3×13	15	8×13	16	8×16	17	10×17	19	10×17	21	10×21	23
3.3	8×16	21	8×16	26	10×17	31	10×17	33	10×17	34	10×21	36
4.7	8×16	31	10×17	33	10×17	38	10×21	44	10×21	45	13×22	46
10	10×17	60	10×21	66	10×21	72	13×22	72	13×22	80	13×27	82
22	10×21	121	13×22	121	13×27	126	13×27	132	16×33	137	16×36	143
33	13×22	154	13×27	167	16×28	178	16×33	186	16×40	192	16×40	201
47	13×27	198	16×33	214	16×33	241	16×40	253	18×40	339	18×40	339
100	16×33	345	16×33	368	16×40	391	22×40	402	22×43	424	22×43	448

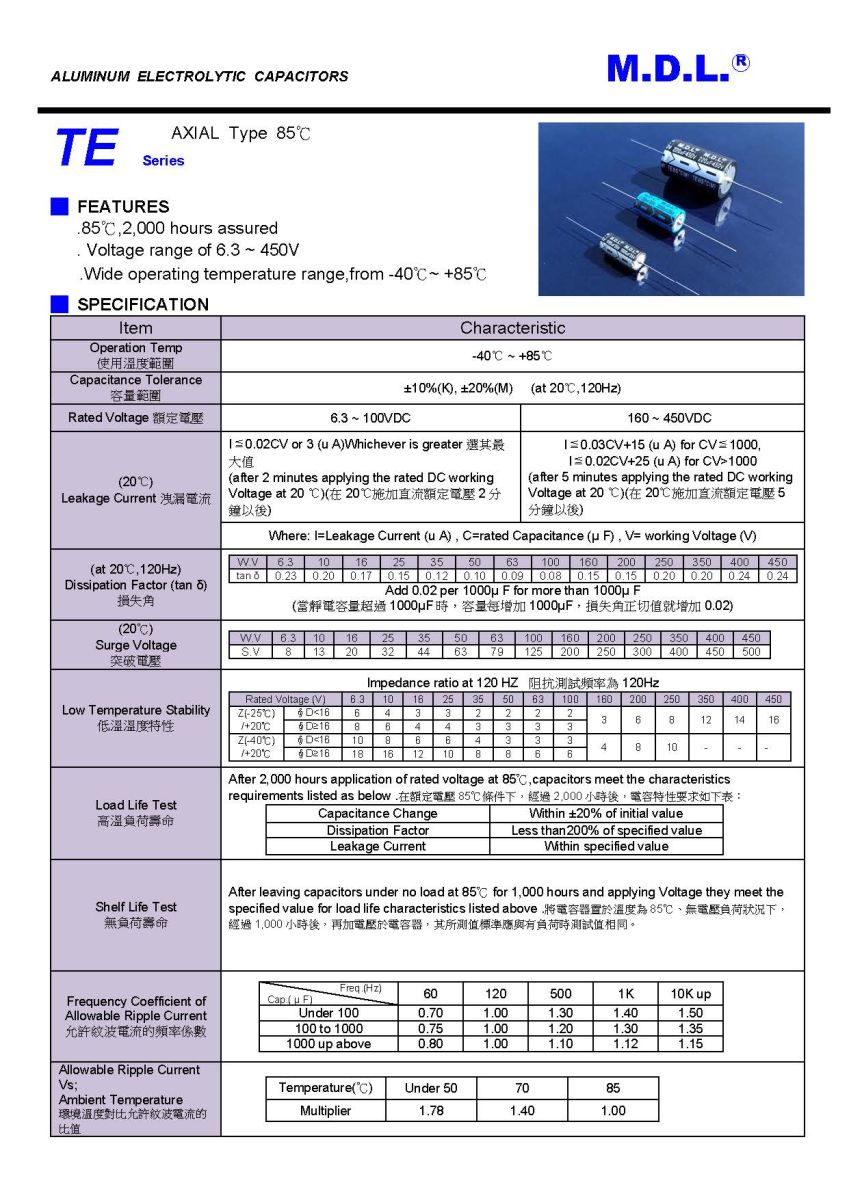

Key Specifications/ Special Features:

Description : AXIAL 85°C

Working voltage : 6.3V ~ 500V

Temp. range : -40°C ~ +85°C

Nominal capacitance : 0.47 to 10,000μ F

Capacitance tolerance : ± 20% (M), (120Hz, 25° C)

Leakage current (25° C) : I ≤ 0.03 CV + 3μ A (after five minutes application)

Load lifespan : 2, 000 hours at 85° C

Case size: Larger than 6.3mm diameter (has safety vent on rubber bun)

• 85°C Standard-Temperature Design
  Operating temperature range of −40°C to +85°C for general electronic equipment.
• 85°C Aluminum Foil and Electrolyte
  Materials and electrolyte formulations are selected for 85°C operating conditions.
• 2,000-Hour Load Endurance
  Qualified through a 2,000-hour load-life test at 85°C under specified rated conditions.
• 6.3VDC to 500VDC Voltage Range
  Supports a broad range of low- and high-voltage electronic circuits.
• Good Cost Efficiency
  Balances performance, reliability and cost in equipment that does not require a 105°C rating.
• Stable Electrical Characteristics
  Provides controlled capacitance, dissipation, leakage current and low-temperature impedance.
• Axial Construction
  Leads extend from opposite ends for convenient horizontal mounting and wiring.
• Multiple Capacitance and Case-Size Options
  A broad selection of values, rated voltages and dimensions supports different design requirements.
• OEM, ODM and Custom Options
  Special capacitance, voltage, dimensions, lead lengths and finishing can be discussed upon request.
